Removal [04/2013 - ]: Procedure

  1. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to DISASSEMBLY [04/2013 - 10/2016] , or refer to DISASSEMBLY [10/2016 - 09/2020] , or refer to DISASSEMBLY [09/2020 - ]

  2. REMOVE SEAT MEMORY SWITCH

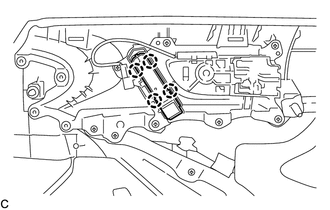

    1. Disengage the 4 claws to remove the seat memory switch from the front door trim board sub-assembly.
      GTY457271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
