Removal [09/2020 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [09/2020 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2020 - 11/2021] , or refer to INITIALIZATION [11/2021 - 09/2022] , or refer to INITIALIZATION [09/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]

  3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 3

  4. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)

    Refer to PROCEDURE - Step 4

  5. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)

    Refer to PROCEDURE - Step 5

  6. REMOVE FRONT DOOR ARMREST COVER

    Refer to PROCEDURE - Step 6

  7. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  8. REMOVE FRONT DOOR NO. 1 STIFFENER CUSHION

    Refer to PROCEDURE - Step 8

  9. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  10. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP

    Refer to PROCEDURE - Step 13

  11. REMOVE OUTER MIRROR CONTROL ECU ASSEMBLY (w/ Memory)

    See step  9

  12. REMOVE OUTER MIRROR PROTECTOR
    1. w/o Memory:

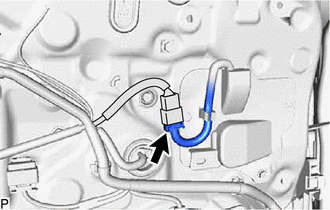

      1. Disconnect the connector.
        GTY967303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Panoramic View Monitor System:

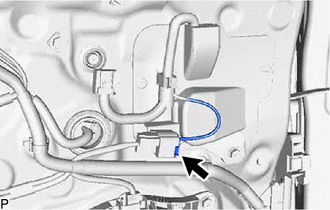

      1. Disconnect the connector.
        GTY967288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

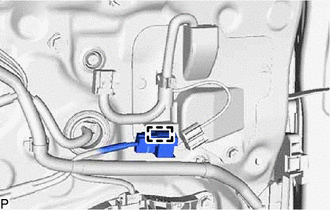

      2. Disengage the connector clamp.
        GTY967289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

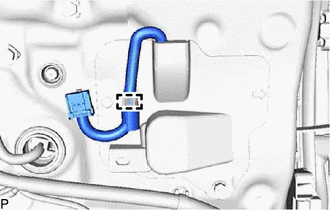

    3. Disengage the wire harness clamp.
      GTY967312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

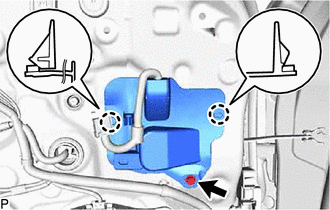

    4. Remove the screw.
      GTY966924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 2 claws and remove the outer mirror protector.
  13. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY

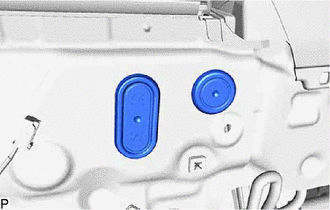

    1. Remove the 2 hole plugs.
      GTY966915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

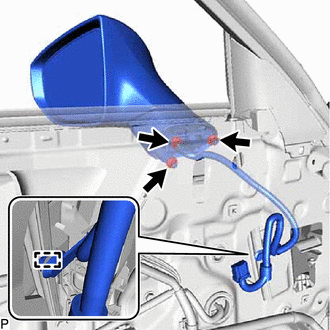

    2. Disengage the clamp.
      GTY966917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 3 nuts.

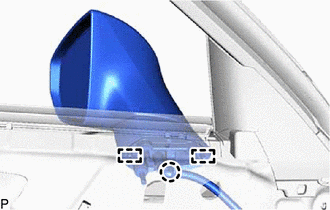

    4. Disengage the claw and 2 guides to remove the outer rear view mirror assembly.
      GTY966933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
