Removal [04/2013 - 10/2016]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [04/2013 - 08/2015] , or refer to PRECAUTION [08/2015 - 10/2016]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [04/2013 - 06/2014] , or refer to INITIALIZATION [06/2014 - 08/2015] , or refer to INITIALIZATION [08/2015 - 10/2016]

  3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 3

  4. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)

    Refer to PROCEDURE - Step 4

  5. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)

    Refer to PROCEDURE - Step 5

  6. REMOVE FRONT DOOR ARMREST COVER

    Refer to PROCEDURE - Step 6

  7. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  8. REMOVE FRONT DOOR NO. 1 STIFFENER CUSHION

    Refer to PROCEDURE - Step 8

  9. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  10. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP

    Refer to PROCEDURE - Step 13

  11. REMOVE OUTER MIRROR CONTROL ECU ASSEMBLY (w/ Memory)

    See step  9

  12. REMOVE OUTER MIRROR PROTECTOR
    1. Disengage the clamp and disconnect the wire harness.
      GTY467300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the screw.
    3. Disengage the 2 claws and remove the outer mirror protector.
  13. REMOVE OUTER MIRROR INSTALL HOLE COVER

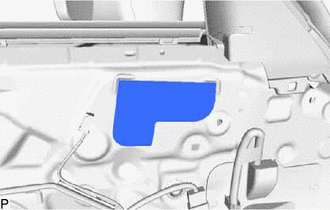

    1. Remove the outer mirror install hole cover.
      GTY457421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY
    1. w/o Memory:
      1. Disconnect the connector.
        GTY470314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
      GTY464355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 3 nuts.
    4. Disengage the claw and remove the outer rear view mirror assembly.
      GTY464354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
