Removal [04/2013 - ]: Procedure
- REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG
Refer to PROCEDURE - Step 3 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 3 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 3 [09/2020 - ]
- REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)
Refer to PROCEDURE - Step 4 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 4 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 4 [09/2020 - ]
- REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)
Refer to PROCEDURE - Step 5 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 5 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 5 [09/2020 - ]
- REMOVE FRONT DOOR ARMREST COVER
Refer to PROCEDURE - Step 6 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 6 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 6 [09/2020 - ]
- REMOVE COURTESY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE FRONT DOOR NO. 1 STIFFENER CUSHION
Refer to PROCEDURE - Step 8 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 8 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 8 [09/2020 - ]
- REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 9 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 9 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 9 [09/2020 - ]
- REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP
Refer to PROCEDURE - Step 13 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 13 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 13 [09/2020 - ]

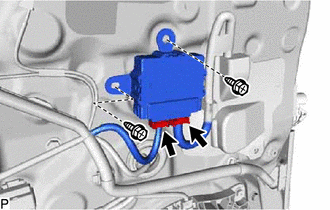

- REMOVE OUTER MIRROR CONTROL ECU ASSEMBLY
