Removal [09/2020 - ]: Procedure

Refer to REMOVAL [04/2013 - ]

HINT:

When removing the front door front lower frame upper cover, heat the vehicle body and front door front lower frame upper cover using a heat light.

Heating Temperature

WARNING:

• Do not touch the heat light and heated parts, touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Using a heat light, heat the vehicle body and front door front lower frame upper cover.

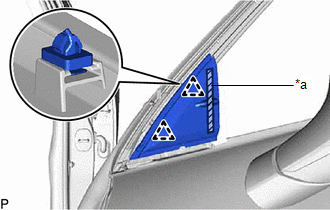

2. Disengage the 2 clips and separate the double-sided tape to remove the front door front lower frame upper cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Double-sided Tape
