Removal [04/2013 - ]: Procedure

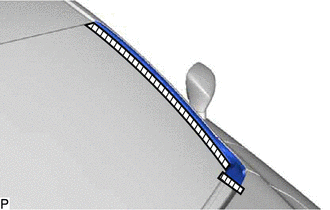

1. Apply protective tape around the windshield outside moulding.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

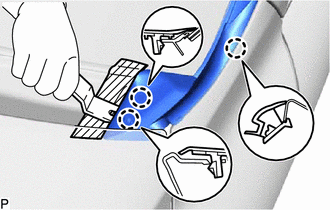

2. Using a moulding remover, disengage the 3 claws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

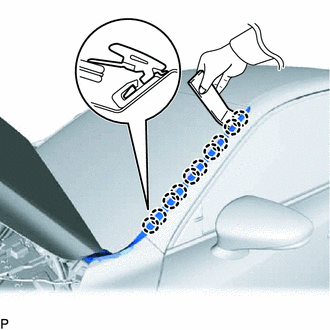

3. Using a moulding remover, disengage the 10 claws and remove the windshield outside moulding.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform the following procedure only when replacement of a windshield No. 1 outside moulding clip is necessary.

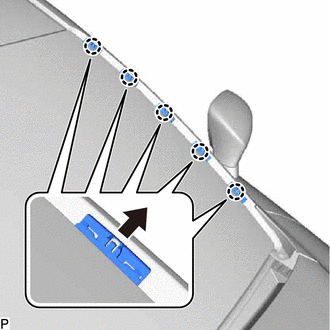

1. Disengage the 5 claws and remove the 5 windshield No. 1 outside moulding clips as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform the following procedure only when replacement of a windshield No. 3 outside moulding clip is necessary.

1. Remove the windshield glass.

   Refer to REMOVAL [04/2013 - 10/2016] , or refer to REMOVAL [10/2016 - 09/2020] , or refer to REMOVAL [09/2020 - ]

2. Insert a 4.0 mm (0.157 in.) drill bit into a drill.
3. Tape the 4.0 mm (0.157 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.

   Standard Measurement

   Area	Measurement
   A	5.0 mm (0.197 in.)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Tape

   NOTE:

   Tape the 4.0 mm (0.157 in.) drill bit to prevent the drill bit from going too deep.

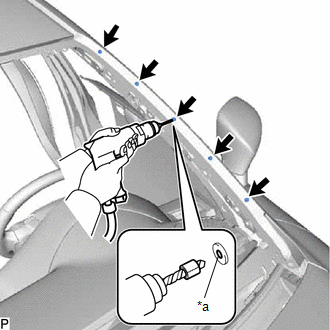

4. Lightly press the drill bit against the windshield No. 3 outside moulding clip to drill off the windshield No. 3 outside moulding clip flanges, and remove the 5 windshield No. 3 outside moulding clips.
   NOTE:

   • Make sure to protect both the inside and outside of the vehicle as the windshield No. 3 outside moulding clip shavings will fly about.
   • Pressing the drill too firmly will cause the windshield No. 3 outside moulding clip to turn and result in the windshield No. 3 outside moulding clip not being drilled through.
   • Prying the windshield No. 3 outside moulding clips with the drill may damage the windshield No. 3 outside moulding clip installation holes or drill bit.
   • Be careful of the drilled windshield No. 3 outside moulding clips, as they may be hot.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Flange

5. Using a vacuum cleaner, remove the windshield No. 3 outside moulding clip fragments and shavings from the drilled areas.
