Removal [09/2020 - ]: Procedure

  1. REMOVE NO. 2 REAR FLOOR HOUSING SHIELD

    See step  1

  2. REMOVE ROCKER PANEL MOULDING ASSEMBLY

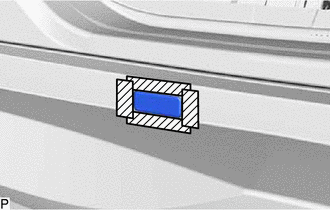

    1. Apply protective tape around the rocker panel moulding cover as shown in the illustration.
      GTY967158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

      HINT:

      Use the same procedure for the other rocker panel moulding cover.

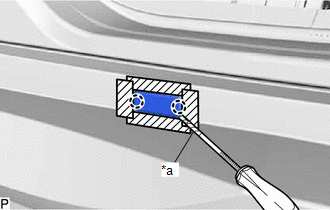

    2. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the rocker panel moulding cover.
      GTY967463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

      HINT:

      Use the same procedure for the other rocker panel moulding cover.

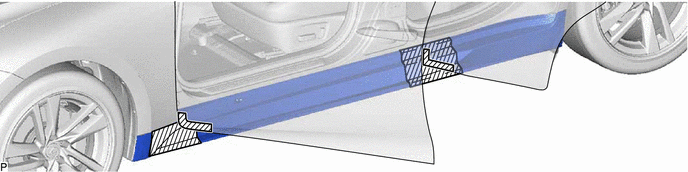

    3. Apply protective tape around the rocker panel moulding assembly and doors as shown in the illustration.
      GTY967731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape - -

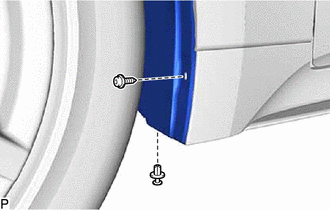

    4. Remove the screw and clip.
      GTY966751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

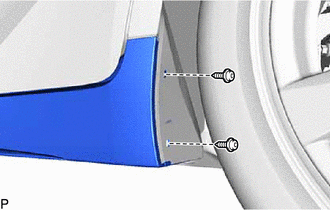

    5. Remove the 2 screws.
      GTY966858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

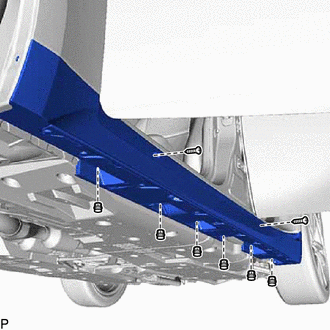

    6. Remove the 6 clips.
      GTY966880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the 2 screws.

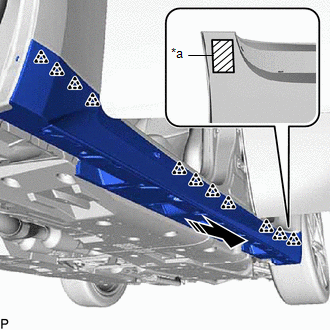

    8. Disengage the 11 clips and separate the double-sided tape and remove the rocker panel moulding assembly as shown in the illustration.
      GTY967420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Double-sided Tape
      Remove in this Direction
