Removal [04/2013 - 09/2020]: Procedure

  1. REMOVE NO. 2 REAR FLOOR HOUSING SHIELD

    See step  1

  2. REMOVE ROCKER PANEL MOULDING ASSEMBLY
    1. Apply protective tape around the rocker panel moulding assembly and door.
      GTY466883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape - -
    2. Remove the screw and clip.
      GTY467553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the screw.
      GTY471013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the rocker panel moulding cover.
      GTY464403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

      HINT:

      Use the same procedure for the other rocker panel moulding cover.

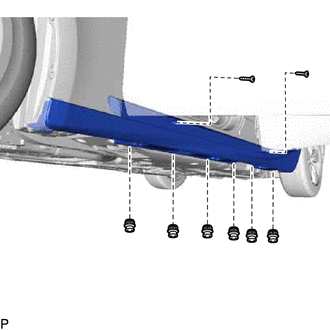

    5. Remove the 6 clips.
      GTY467549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 2 screws.
    7. Disengage the 11 clips and remove the rocker panel moulding assembly.
      GTY467554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Remove the 11 clips from the rocker panel moulding assembly.
