Reassembly [09/2020 - ]: Procedure

1. Engage the 10 claws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the screw.
3. Install the rocker panel lower moulding with the 10 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When installing the No. 2 side mudguard protector, heat the rocker panel moulding assembly using a heat light.

WARNING:

• Do not touch the heat light and heated parts, touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Clean the rocker panel moulding assembly.
   1. Remove any remaining double-sided tape from the rocker panel moulding assembly.
   2. Wipe off any tape adhesive residue with cleaner.
2. Using a brush or felt, apply primer or equivalent to the No. 2 side mudguard protector installation area.
   NOTE:

   • Use a clean brush or felt.
   • Do not touch the rocker panel moulding assembly until the primer has dried.
3. Remove the release paper from a new No. 2 side mudguard protector.

   HINT:

   After removing the release paper, keep the exposed adhesive free from foreign matter.

4. Install the No. 2 side mudguard protector as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Press the No. 2 side mudguard protector firmly to install it.

HINT:

When installing the No. 1 rocker panel moulding protector, heat the rocker panel moulding assembly using a heat light.

WARNING:

• Do not touch the heat light and heated parts, touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Clean the rocker panel moulding assembly.
   1. Remove any remaining double-sided tape from the rocker panel moulding assembly.
   2. Wipe off any tape adhesive residue with cleaner.
2. Using a brush or felt, apply primer or equivalent to the No. 1 rocker panel moulding protector installation area.
   NOTE:

   • Use a clean brush or felt.
   • Do not touch the rocker panel moulding assembly until the primer has dried.
3. Remove the release paper from 2 new No. 1 rocker panel moulding protectors.

   HINT:

   After removing the release paper, keep the exposed adhesive free from foreign matter.

4. Install the 2 No. 1 rocker panel moulding protectors as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

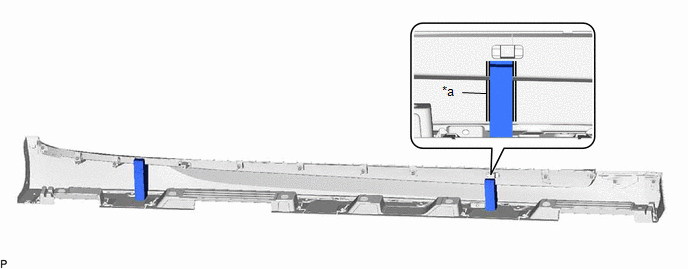

   *a

   Line

   -

   -

   HINT:

   Press the No. 1 rocker panel moulding protector firmly to install it.

HINT:

When installing the No. 3 rocker panel moulding protector, heat the rocker panel moulding assembly using a heat light.

WARNING:

• Do not touch the heat light and heated parts, touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Clean the rocker panel moulding assembly.
   1. Remove any remaining double-sided tape from the rocker panel moulding assembly.
   2. Wipe off any tape adhesive residue with cleaner.
2. Using a brush or felt, apply primer or equivalent to the No. 3 rocker panel moulding protector installation area.
   NOTE:

   • Use a clean brush or felt.
   • Do not touch the rocker panel moulding assembly until the primer has dried.
3. Remove the release paper from a new No. 3 rocker panel moulding protector.

   HINT:

   After removing the release paper, keep the exposed adhesive free from foreign matter.

4. Install the No. 3 rocker panel moulding protector as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A

   for Type A

   *B

   for Type B

   HINT:

   Press the No. 3 rocker panel moulding protector firmly to install it.

HINT:

When installing the No. 2 rocker panel moulding protector, heat the rocker panel moulding assembly using a heat light.

WARNING:

• Do not touch the heat light and heated parts, touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Clean the rocker panel moulding assembly.
   1. Remove any remaining double-sided tape from the rocker panel moulding assembly.
   2. Wipe off any tape adhesive residue with cleaner.
2. Using a brush or felt, apply primer or equivalent to the No. 2 rocker panel moulding protector installation area.
   NOTE:

   • Use a clean brush or felt.
   • Do not touch the rocker panel moulding assembly until the primer has dried.
3. Remove the release paper from a new No. 2 rocker panel moulding protector.

   HINT:

   After removing the release paper, keep the exposed adhesive free from foreign matter.

4. Install the No. 2 rocker panel moulding protector as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Press the No. 2 rocker panel moulding protector firmly to install it.
