Disassembly [04/2013 - 09/2020]: Procedure

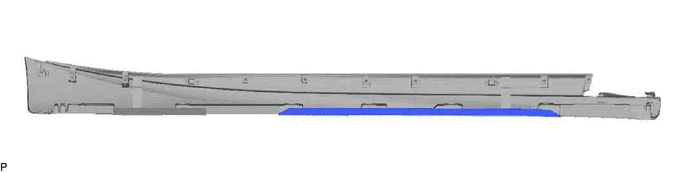

  1. REMOVE NO. 2 ROCKER PANEL MOULDING PROTECTOR
    1. Remove the No. 2 rocker panel moulding protector.
      GTY456823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

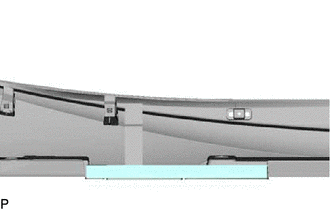

  2. REMOVE NO. 3 ROCKER PANEL MOULDING PROTECTOR
    1. Remove the No. 3 rocker panel moulding protector.
      GTY468681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

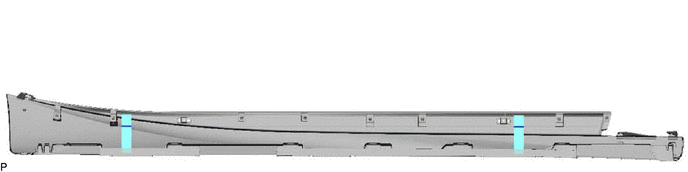

  3. REMOVE NO. 1 ROCKER PANEL MOULDING PROTECTOR
    1. Remove the 2 No. 1 rocker panel moulding protectors.
      GTY456819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 2 SIDE MUDGUARD PROTECTOR
    1. Remove the No. 2 side mudguard protector.
      GTY456824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 1 SIDE MUDGUARD PROTECTOR
    1. for Front Side:
      1. Remove the No. 1 side mudguard protector from the rocker panel moulding body.
        GTY456822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Rear Side:
      1. Remove the No. 1 side mudguard protector from the rocker panel moulding body.
        GTY456826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
