Home >> Lexus >> 2021 >> IS 350 RWD >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Exterior Panels / Trim - Service Information (2 Of 2) >> Rear Wheel House Plate >> Removal [04/2013 - 09/2020] >> Procedure

Removal [04/2013 - 09/2020]: Procedure

  1. REMOVE NO. 2 REAR FLOOR HOUSING SHIELD
    1. Remove the clip.

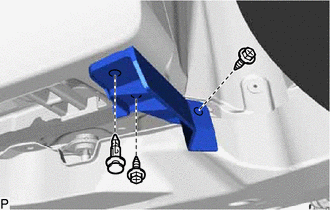

      GTY467535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and front No. 2 rear floor housing shield.
