Reassembly [09/2020 - ]: Procedure

  1. INSTALL NO. 2 REAR SPOILER SEAL

    HINT:

    When installing the No. 2 rear spoiler seal, heat the rear spoiler using a heat light.

    HEATING TEMPERATURE

    Item Temperature
    Rear Spoiler 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts, touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the rear spoiler excessively.

    1. Clean the rear spoiler surface.
      1. Using a heat light, heat the rear spoiler surface.
      2. Remove the double-sided tape from the rear spoiler.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Using a heat light, heat the rear spoiler.
    3. Remove the release paper from 2 new No. 2 rear spoiler seals.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

    4. Install the 2 No. 2 rear spoiler seals as shown in the illustration.

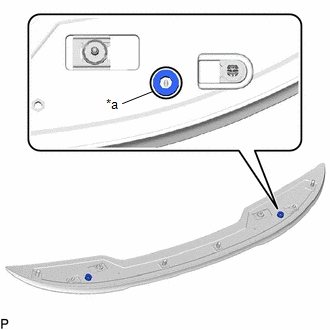

      GTY967872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Line

      HINT:

      Install each No. 2 rear spoiler seal along the line on the rear spoiler.

  2. INSTALL NO. 1 REAR SPOILER SEAL

    HINT:

    When installing the No. 1 rear spoiler seal, heat the rear spoiler using a heat light.

    HEATING TEMPERATURE

    Item Temperature
    Rear Spoiler 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts, touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the rear spoiler excessively.

    1. Clean the rear spoiler surface.
      1. Using a heat light, heat the rear spoiler surface.
      2. Remove the double-sided tape from the rear spoiler.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Using a heat light, heat the rear spoiler.
    3. Remove the release paper from 2 new No. 1 rear spoiler seals.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

    4. Install the 2 No. 1 rear spoiler seals as shown in the illustration.

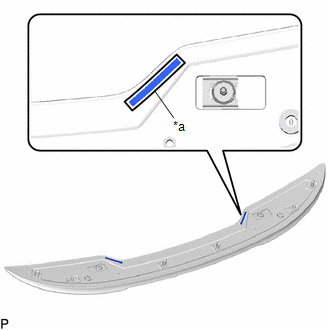

      GTY967187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Line

      HINT:

      Install each No. 2 rear spoiler seal along the line on the rear spoiler.

  3. INSTALL REAR SPOILER ADHESIVE

    HINT:

    When installing the rear spoiler adhesive, heat the rear spoiler using a heat light.

    HEATING TEMPERATURE

    Item Temperature
    Rear Spoiler 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts, touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the rear spoiler excessively.

    1. Clean the rear spoiler surface.
      1. Using a heat light, heat the rear spoiler surface.
      2. Remove the double-sided tape from the rear spoiler.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Using a heat light, heat the rear spoiler.
    3. Remove the release paper from 2 new rear spoiler adhesives.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

    4. Install the 2 rear spoiler adhesives as shown in the illustration.

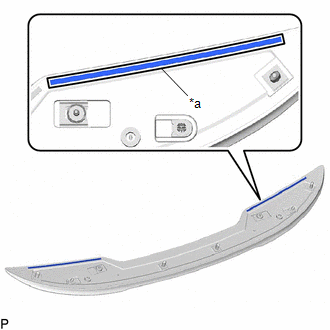

      GTY966549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Line

      HINT:

      Install each rear spoiler adhesive along the line on the rear spoiler.

  4. INSTALL REAR SPOILER SEAL

    HINT:

    When installing the rear spoiler seal, heat the rear spoiler using a heat light.

    HEATING TEMPERATURE

    Item Temperature
    Rear Spoiler 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts, touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the rear spoiler excessively.

    1. Clean the rear spoiler surface.
      1. Using a heat light, heat the rear spoiler surface.
      2. Remove the double-sided tape from the rear spoiler.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Using a heat light, heat the rear spoiler.
    3. Remove the release paper from 2 new rear spoiler seals.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

    4. Install the 2 rear spoiler seals as shown in the illustration.

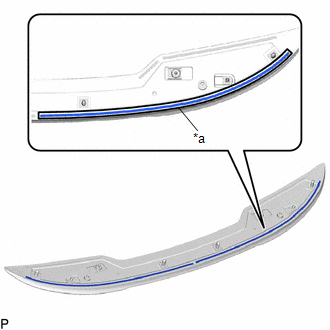

      GTY967630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Line

      HINT:

      Install each rear spoiler seal along the line on the rear spoiler.

  5. INSTALL NO. 3 REAR SPOILER PROTECTOR

    HINT:

    When installing the No. 3 rear spoiler protector, heat the rear spoiler using a heat light.

    HEATING TEMPERATURE

    Item Temperature
    Rear Spoiler 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts, touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the rear spoiler excessively.

    1. Clean the rear spoiler surface.
      1. Using a heat light, heat the rear spoiler surface.
      2. Remove the double-sided tape from the rear spoiler.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Using a heat light, heat the rear spoiler.
    3. Remove the release paper from 2 new No. 3 rear spoiler protectors.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

    4. Install the 2 No. 3 rear spoiler protectors as shown in the illustration.

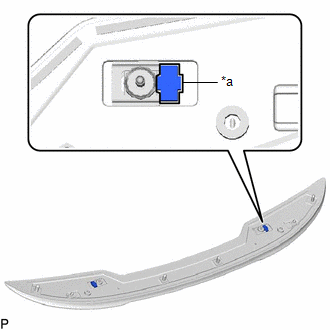

      GTY967338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Line

      HINT:

      Install each No. 3 rear spoiler protector along the line on the rear spoiler.

  6. INSTALL REAR SPOILER PROTECTOR LH

    HINT:

    When installing the rear spoiler protector LH, heat the rear spoiler using a heat light.

    HEATING TEMPERATURE

    Item Temperature
    Rear Spoiler 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts, touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the rear spoiler excessively.

    1. Clean the rear spoiler surface.
      1. Using a heat light, heat the rear spoiler surface.
      2. Remove the double-sided tape from the rear spoiler.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Using a heat light, heat the rear spoiler.
    3. Remove the release paper from a new rear spoiler protector LH.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

    4. Install the rear spoiler protector LH as shown in the illustration.

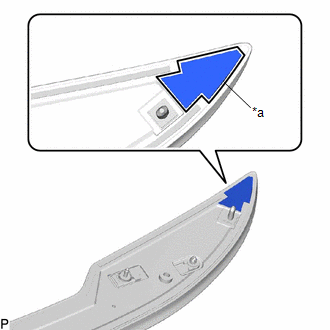

      GTY966827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Line

      HINT:

      Install the rear spoiler protector LH along the line on the rear spoiler.

  7. INSTALL REAR SPOILER PROTECTOR RH

    HINT:

    Use the same procedure as for the LH side.

  8. INSTALL NO. 1 REAR SPOILER PROTECTOR

    HINT:

    When installing the No. 1 rear spoiler protector, heat the rear spoiler using a heat light.

    HEATING TEMPERATURE

    Item Temperature
    Rear Spoiler 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts, touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the rear spoiler excessively.

    1. Clean the rear spoiler surface.
      1. Using a heat light, heat the rear spoiler surface.
      2. Remove the double-sided tape from the rear spoiler.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Using a heat light, heat the rear spoiler.
    3. Remove the release paper from 2 new No. 1 rear spoiler protectors.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

    4. Install the 2 No. 1 rear spoiler protectors as shown in the illustration.

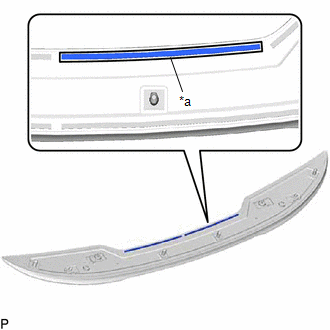

      GTY967359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Line

      HINT:

      Install each No. 1 rear spoiler protector along the line on the rear spoiler.
