Disassembly [09/2020 - ]: Procedure

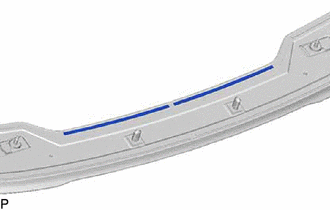

  1. REMOVE NO. 1 REAR SPOILER PROTECTOR
    1. Remove the 2 No. 1 rear spoiler protectors.
      GTY966579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

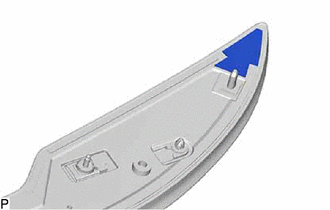

  2. REMOVE REAR SPOILER PROTECTOR LH
    1. Remove the rear spoiler protector LH.
      GTY967375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR SPOILER PROTECTOR RH

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE NO. 3 REAR SPOILER PROTECTOR
    1. Remove the 2 No. 3 rear spoiler protectors.
      GTY967356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR SPOILER SEAL
    1. Remove the 2 rear spoiler seals.
      GTY967354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR SPOILER ADHESIVE
    1. Remove the 2 rear spoiler adhesives.
      GTY967351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 1 REAR SPOILER SEAL
    1. Remove the 2 No. 1 rear spoiler seals.
      GTY967348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 2 REAR SPOILER SEAL
    1. Remove the 2 No. 2 rear spoiler seals.
      GTY967363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
