Removal [04/2013 - 06/2014]: Procedure

REMOVE SYMBOL EMBLEM

Apply protective tape around the symbol emblem.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

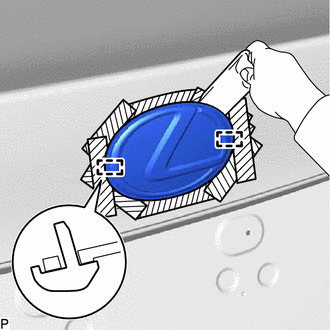

Using a moulding remover, separate the double-sided tape and disengage the 2 pins to remove the symbol emblem.
NOTE:
Be careful not to damage the vehicle body.

REMOVE NO. 3 LUGGAGE COMPARTMENT DOOR NAME PLATE

Apply protective tape around the No. 3 luggage compartment door name plate.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

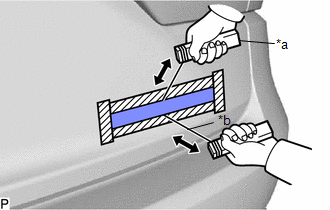

Insert a piano wire between the vehicle body and No. 3 luggage compartment door name plate.
Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
Pull the piano wire and cut the double-sided tape that holds the No. 3 luggage compartment door name plate to the vehicle body.
NOTE:
Be careful not to damage the vehicle body.
Remove the No. 3 luggage compartment door name plate.

REMOVE FRONT FENDER NAME PLATE

Apply protective tape around the front fender name plate.

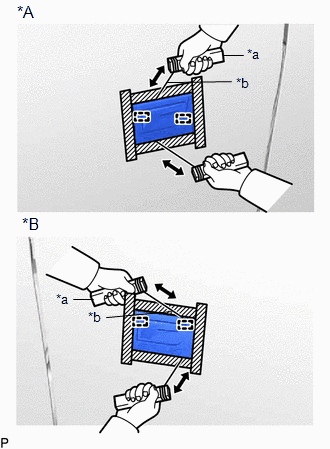

Insert a piano wire between the vehicle body and front fender name plate.
Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
Pull the piano wire and cut the double-sided tape that holds the front fender name plate to the vehicle body.
NOTE:
Be careful not to damage the vehicle body.
Disengage the 2 pins to remove the front fender name plate.
