Removal [09/2020 - ]: Procedure

  1. REMOVE NO. 3 LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

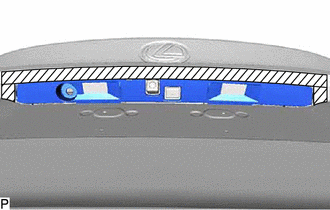

    1. Apply protective tape around the No. 3 luggage compartment door outside garnish.
      GTY966739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

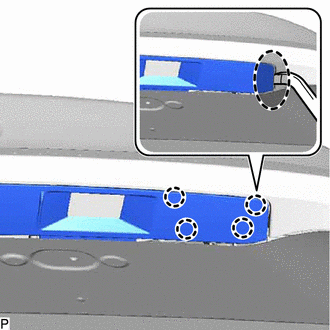

    2. Using a moulding remover, disengage the 4 claws as shown in the illustration.
      GTY967717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Moulding Remover Here

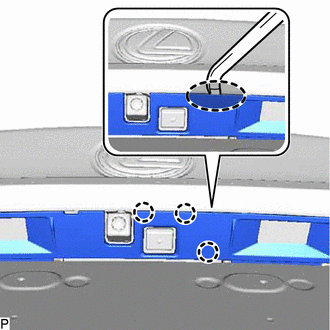

    3. Using a moulding remover, disengage the 3 claws as shown in the illustration.
      GTY966499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Moulding Remover Here

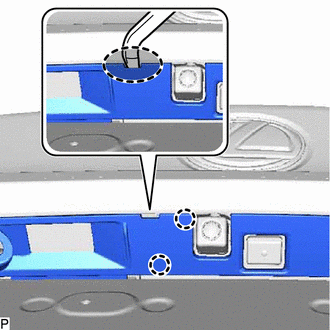

    4. Using a moulding remover, disengage the 2 claws as shown in the illustration.
      GTY967453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Moulding Remover Here

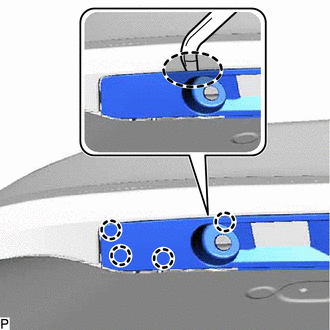

    5. Using a moulding remover, disengage the 4 claws as shown in the illustration to remove the No. 3 luggage compartment door outside garnish.
      GTY966716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Moulding Remover Here
