Components [04/2013 - 09/2020]

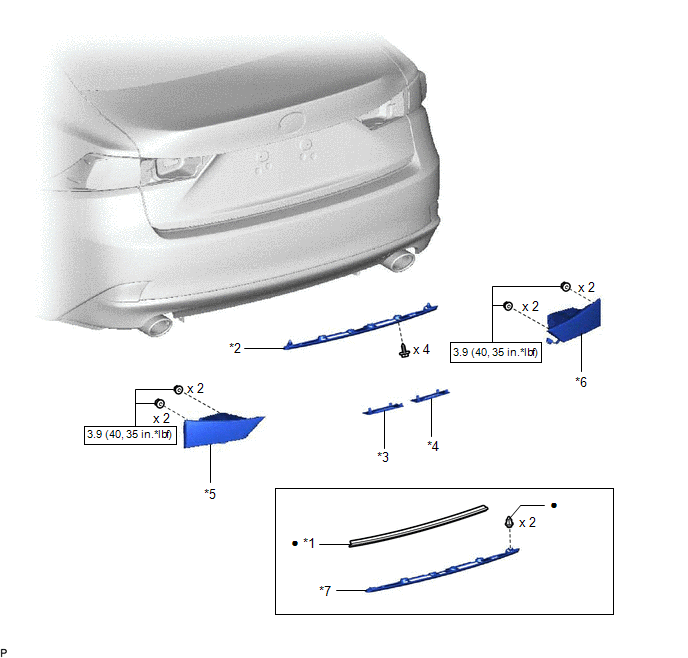

Fig 1: Luggage Compartment Door Outside Garnish Replacement Components [04/2013 - 09/2020] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

LUGGAGE COMPARTMENT DOOR COVER

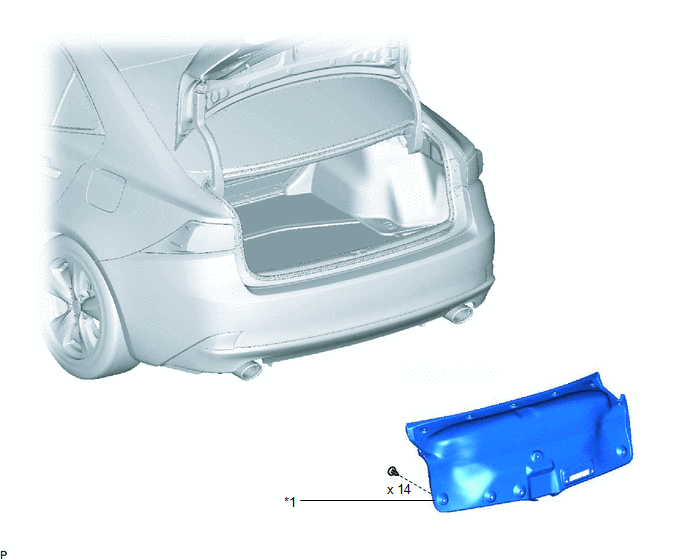

Fig 2: Luggage Compartment Door Outside Garnish Replacement Components With Torque Specifications [04/2013 - 09/2020] (2 Of 2)

*1	LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH PROTECTOR	*2	LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY
*3	LUGGAGE COMPARTMENT DOOR OUTSIDE UPPER GARNISH LH	*4	LUGGAGE COMPARTMENT DOOR OUTSIDE UPPER GARNISH RH
*5	REAR LIGHT ASSEMBLY LH	*6	REAR LIGHT ASSEMBLY RH
*7	LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
