Removal [04/2013 - ]: Procedure

Refer to REMOVAL [04/2013 - 09/2020] , or refer to REMOVAL [09/2020 - ]

Refer to PROCEDURE - Step 9

Refer to PROCEDURE - Step 39 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 38 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 38 [09/2020 - ]

Refer to PROCEDURE - Step 40 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 39 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 39 [09/2020 - ]

HINT:

When removing the front door rear window frame moulding, heat the vehicle body and front door rear window frame moulding using a heat light.

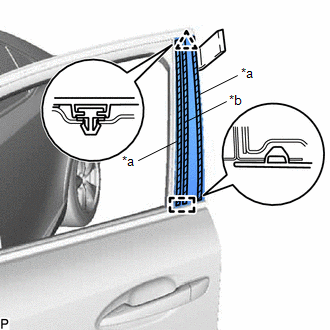

1. Using a heat light, heat the front door rear window frame moulding.
2. Using a moulding remover, disengage the clip and guide, and remove the front door rear window frame moulding.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Double-sided Tape
   *b	Caulking Sponge

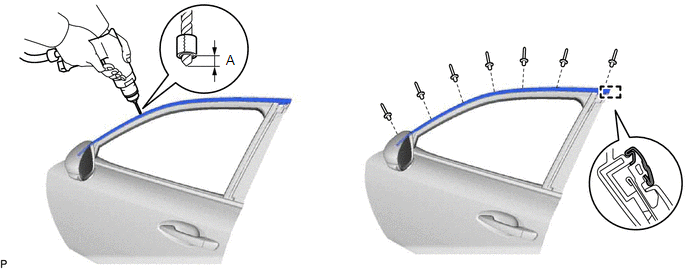

1. Insert a 4.0 mm (0.157 in.) drill bit into a drill.
2. Tape the 4.0 mm (0.157 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Area	Dimension
   A	5.0 mm

   NOTE:

   Tape the 4.0 mm (0.157 in.) drill bit to prevent the drill bit from going too deep.

3. Lightly press the drill against the rivets to drill off the rivet flanges, and remove the 7 rivets.
   NOTE:

   • Pressing the drill too firmly will cause the rivet to turn and result in the rivet not being drilled through.
   • Prying the rivets with the drill may damage the rivet installation holes or drill bit.
   • Be careful of the drilled rivets, as they may be hot.
4. Using a vacuum cleaner, remove the rivet fragments and shavings from the drilled areas.
5. Disengage the guide to remove the front door upper window frame moulding from the door frame.
