Removal [09/2020 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [09/2020 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2020 - 11/2021] , or refer to INITIALIZATION [11/2021 - 09/2022] , or refer to INITIALIZATION [09/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]

  3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 3

  4. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)

    Refer to PROCEDURE - Step 4

  5. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)

    Refer to PROCEDURE - Step 5

  6. REMOVE FRONT DOOR ARMREST COVER

    Refer to PROCEDURE - Step 6

  7. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  8. REMOVE FRONT DOOR NO. 1 STIFFENER CUSHION

    Refer to PROCEDURE - Step 8

  9. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  10. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP

    Refer to PROCEDURE - Step 13

  11. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH

    Refer to PROCEDURE - Step 18

  12. REMOVE FRONT DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 19

  13. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21

  14. REMOVE FRONT DOOR GLASS RUN

    Refer to PROCEDURE - Step 25

  15. REMOVE FRONT DOOR BELT MOULDING ASSEMBLY

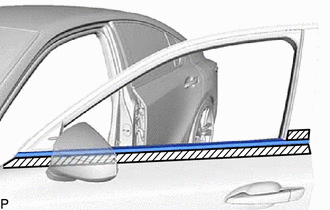

    1. Apply protective tape around the front door belt moulding assembly.
      GTY967278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

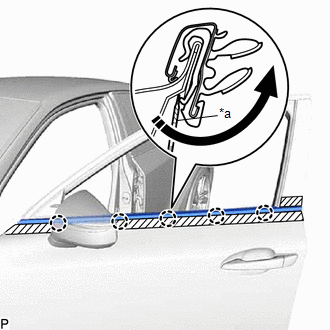

    2. Using a screwdriver with its tip wrapped with protective tape, disengage the 5 claws as shown in the illustration.
      GTY966476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction

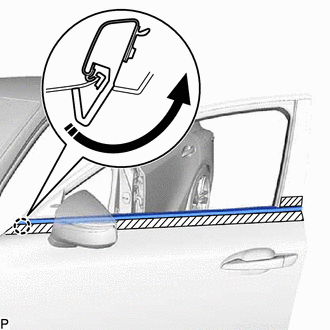

    3. Disengage the claw as shown in the illustration to remove the front door belt moulding assembly.
      GTY966467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
