Removal [04/2013 - 09/2020]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [04/2013 - 08/2015] , or refer to PRECAUTION [08/2015 - 10/2016] , or refer to PRECAUTION [10/2016 - 10/2017] , or refer to PRECAUTION [10/2017 - 09/2020]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [04/2013 - 06/2014] , or refer to INITIALIZATION [06/2014 - 08/2015] , or refer to INITIALIZATION [08/2015 - 10/2016] , or refer to INITIALIZATION [10/2016 - 10/2017] , or refer to INITIALIZATION [10/2017 - 09/2020]

  3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 3 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 3 [10/2016 - 09/2020]

  4. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)

    Refer to PROCEDURE - Step 4 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 4 [10/2016 - 09/2020]

  5. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)

    Refer to PROCEDURE - Step 5 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 5 [10/2016 - 09/2020]

  6. REMOVE FRONT DOOR ARMREST COVER

    Refer to PROCEDURE - Step 6 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 6 [10/2016 - 09/2020]

  7. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  8. REMOVE FRONT DOOR NO. 1 STIFFENER CUSHION

    Refer to PROCEDURE - Step 8 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 8 [10/2016 - 09/2020]

  9. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 9 [10/2016 - 09/2020]

  10. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP

    Refer to PROCEDURE - Step 13 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 13 [10/2016 - 09/2020]

  11. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH

    Refer to PROCEDURE - Step 19 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 18 [10/2016 - 09/2020]

  12. REMOVE FRONT DOOR FRONT LOWER FRAME UPPER COVER

    Refer to PROCEDURE - Step 45 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 44 [10/2016 - 09/2020]

  13. REMOVE FRONT DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 20 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 19 [10/2016 - 09/2020]

  14. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 21 [10/2016 - 09/2020]

  15. REMOVE FRONT DOOR GLASS RUN

    Refer to PROCEDURE - Step 26 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 25 [10/2016 - 09/2020]

  16. REMOVE FRONT DOOR BELT MOULDING ASSEMBLY

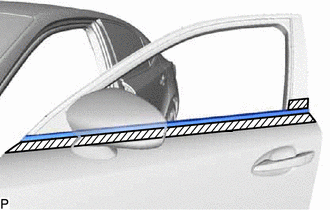

    1. Apply protective tape around the front door belt moulding assembly.
      GTY460539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

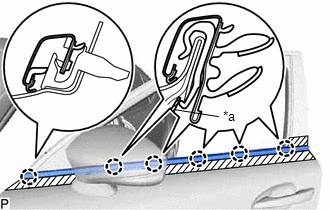

    2. Using a screwdriver with its tip wrapped with protective tape, disengage the 6 claws and remove the front door belt moulding assembly.
      GTY462826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
