Components [04/2013 - 09/2020]

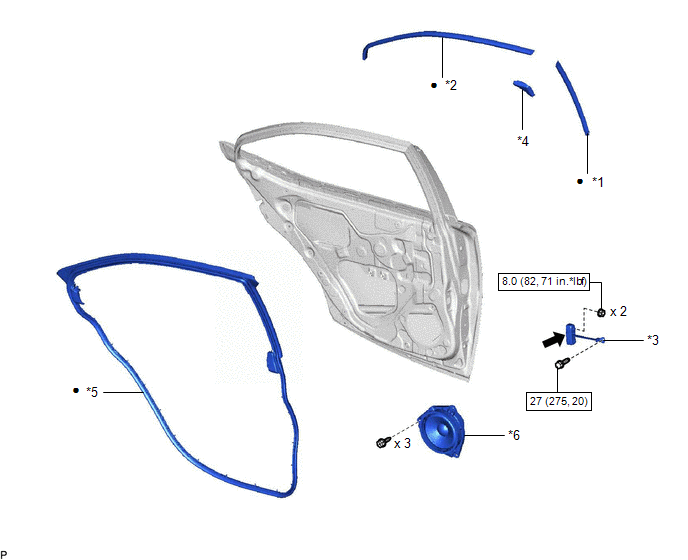

Fig 1: Black Out Tape (For Rear Door) Replacement Components With Torque Specifications [04/2013 - 09/2020]
| *1 | FRONT INNER BLACK OUT TAPE | *2 | INNER UPPER BLACK OUT TAPE |
| *3 | REAR DOOR CHECK ASSEMBLY | *4 | REAR DOOR FRAME GARNISH |
| *5 | REAR DOOR WEATHERSTRIP | *6 | REAR SPEAKER ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| MP Grease | * | Precoated part |
