Removal [04/2013 - ]: Procedure

  1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 3 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 3 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 3 [09/2020 - ]

  2. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)

    Refer to PROCEDURE - Step 4 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 4 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 4 [09/2020 - ]

  3. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)

    Refer to PROCEDURE - Step 5 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 5 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 5 [09/2020 - ]

  4. REMOVE FRONT DOOR ARMREST COVER

    Refer to PROCEDURE - Step 6 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 6 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 6 [09/2020 - ]

  5. REMOVE COURTESY LIGHT ASSEMBLY

    See step  1

  6. REMOVE FRONT DOOR NO. 1 STIFFENER CUSHION

    Refer to PROCEDURE - Step 8 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 8 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 8 [09/2020 - ]

  7. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 9 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 9 [09/2020 - ]

  8. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP

    Refer to PROCEDURE - Step 13 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 13 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 13 [09/2020 - ]

  9. REMOVE FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY

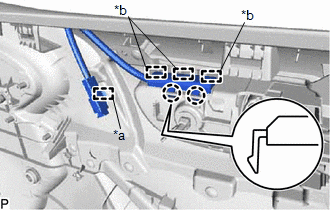

    1. Disengage the clamp.
      GTY470563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide
    2. Disengage the 2 claws and 3 guides to remove the front door inside handle illumination light assembly from the front door trim board sub-assembly.
