Installation [09/2020 - ]: Procedure

  1. INSTALL REAR COMBINATION LIGHT LENS AND BODY
  2. INSTALL REAR TURN SIGNAL LIGHT BULB

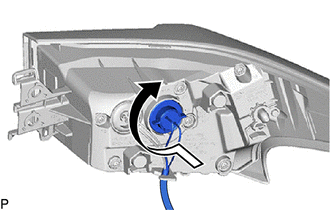

    1. Install the rear turn signal light bulb to the rear combination light socket and wire.
    2. Turn the rear combination light socket and wire with the rear turn signal light bulb as shown in the illustration to connect them as a unit.
      GTY971800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR BUMPER UPPER RETAINER

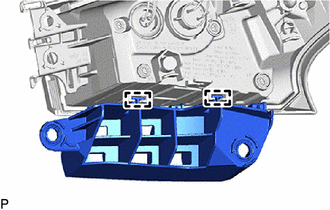

    1. Engage the 2 guides to install the rear bumper upper retainer.
      GTY970514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL REAR COMBINATION LIGHT ASSEMBLY
    1. Engage the grommet.

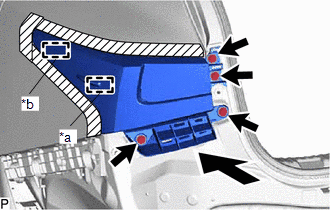

    2. Engage the guide and pin to temporarily install the rear combination light assembly as shown in the illustration.
      GTY971257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin
      *b Guide
    3. Install the rear combination light assembly with the 4 screws.
    4. Remove the protective tape.
    5. Connect the connector.
  5. INSTALL LUGGAGE COMPARTMENT TRIM COVER

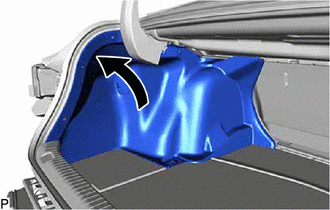

    1. Install the luggage compartment trim cover to its original position as shown in the illustration.
      GTY971848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 3 clips.
  6. INSTALL REAR BUMPER ASSEMBLY

    Refer to INSTALLATION [09/2020 - ]

  7. INSTALL REAR COMBINATION LIGHT COVER

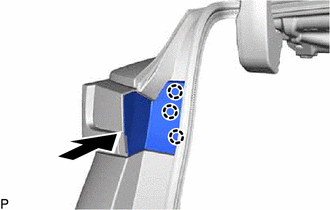

    1. Engage the 3 claws as shown in the illustration.
      GTY971860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

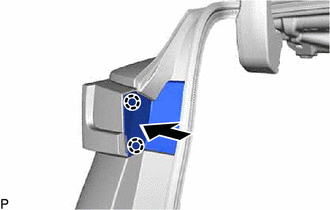

    2. Engage the 2 claws to install the rear combination light cover as shown in the illustration.
      GTY971859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
