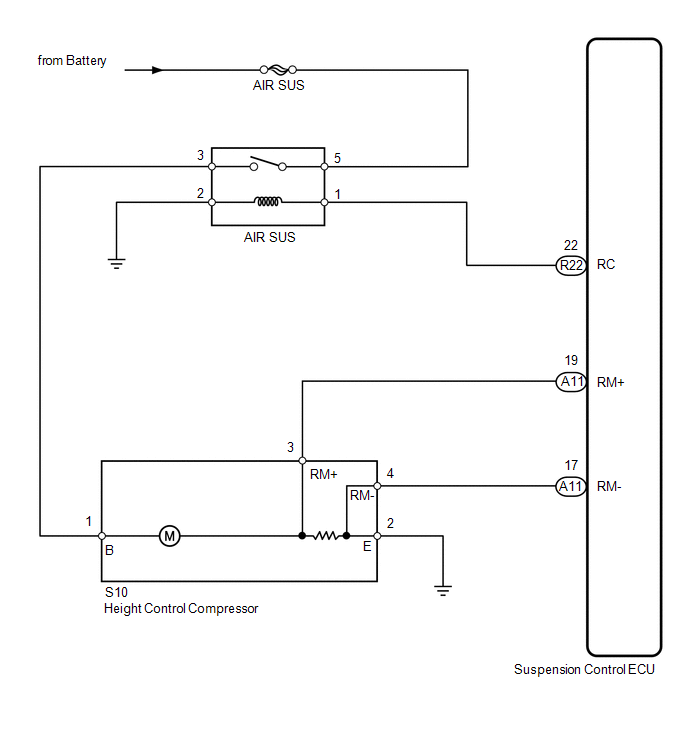

DTC C1752-52: Compressor Motor Malfunction [08/2015 - 08/2019]: Wiring Diagram

GTY625286

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
