DTC C1745-45: Exhaust Solenoid [08/2015 - 08/2019]: Procedure

1. Turn the engine switch off.
2. Connect the Techstream to the DLC3.
3. Turn the engine switch on (IG).
4. Turn the Techstream on.
5. Enter the following menus: Chassis / Air suspension / Active Test.
   AIR SUSPENSION



   Tester Display	Test Part	Control Range	Diagnostic Note
   Exhaust Solenoid	Exhaust solenoid valve	ON or OFF	The operating sound of the solenoid (clicking sound) can be heard. When the Active Test is performed, Exhaust Solenoid in the Data List changes between ON and OFF accordingly.

   OK

   Operation of solenoid (clicking sound) can be heard.

   RESULT



   Result	Proceed to
   NG	A
   OK (When troubleshooting according to problem symptoms table)	B
   OK (When troubleshooting according to DTC chart)	C

Result:

B

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

(Refer to PROBLEM SYMPTOMS TABLE [08/2015 - ] )

Result:

C

USE SIMULATION METHOD TO CHECK

(Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2015 - 08/2019] )

Result:

A

See step  2

1. Disconnect the S9 exhaust solenoid valve connector.
2. Disconnect the R22 suspension control ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   S9-2 (L) - R22-9 (SLEX)	Always	Below 1 Ω
   S9-2 (L) - Body ground	Always	10 kΩ or higher
   S9-1 (B) - Body ground	Always	Below 1 Ω

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  3

1. Turn the engine switch off.
2. Remove the height control compressor (Refer to REMOVAL [08/2015 - ] ).
3. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   2 (L) - 1 (B)	20°C (68°F)	10 to 14 Ω

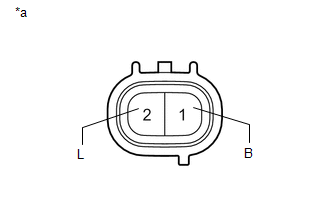

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Exhaust Valve)

4. Connect the positive (+) lead of the battery to terminal 2 (L) and the negative (-) lead to terminal 1 (B) of the solenoid valve connector. Then check that the valve makes an operating sound.

   OK

   Operation of solenoid (clicking sound) can be heard.

Result:

OK

REPLACE SUSPENSION CONTROL ECU

(Refer to REMOVAL [08/2015 - ] )

Result:

NG

REPLACE HEIGHT CONTROL COMPRESSOR ASSEMBLY

(Refer to REMOVAL [08/2015 - ] )
