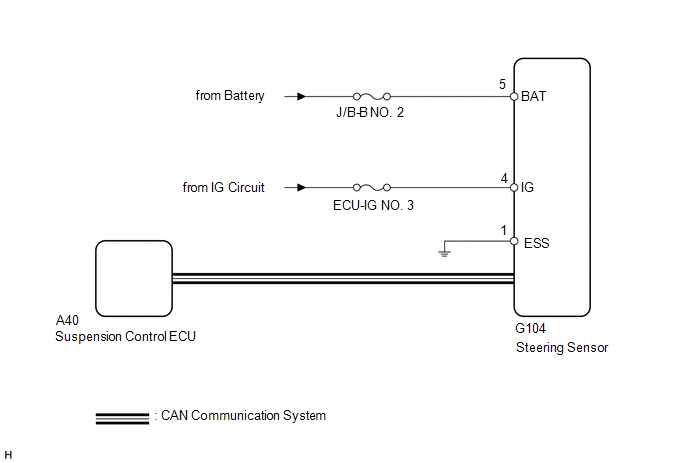

DTC C1784: Steering Sensor Signal Malfunction [08/2019 - ]: Wiring Diagram

GTY954182

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
