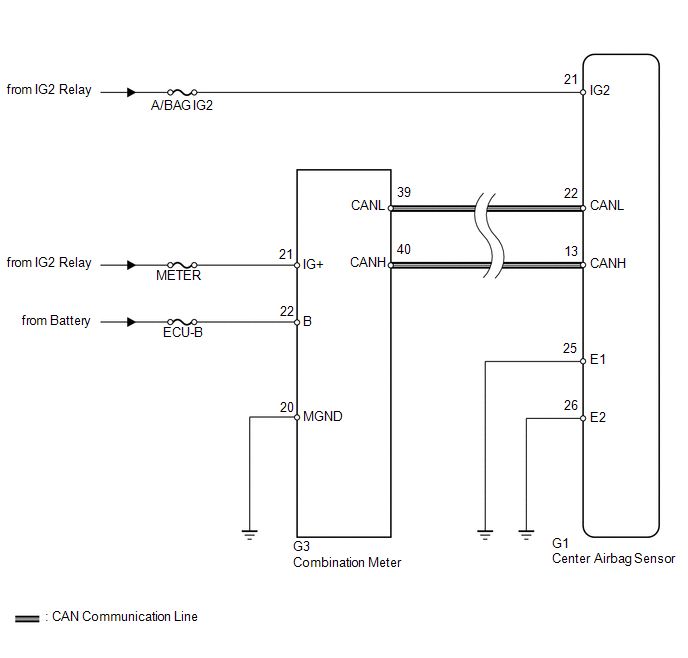

SRS Warning Light Remains ON [08/2019 - ]: Wiring Diagram

GTY954145

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
