Diagnosis Circuit [08/2015 - 08/2019]: Procedure
- CHECK CAN COMMUNICATION SYSTEM
- Check if a CAN communication system DTC is output (Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2015 - 08/2019]
).RESULT
Result Proceed to DTC is not output A DTC is output B
Result:
B
REPAIR CIRCUITS INDICATED BY OUTPUT DTCS
(Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2015 - 08/2019] )
Result:
A
See step 2
- Check if a CAN communication system DTC is output (Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2015 - 08/2019]
).
- CHECK HARNESS AND CONNECTOR (DLC3 - ECM)
- Turn the engine switch off.
- Disconnect the G45 connector from the ECM.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

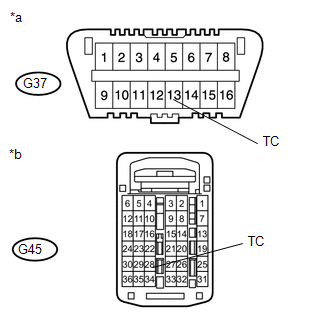

Tester Connection Condition Specified Condition G37-13 (TC) - G45-28 (TC) Always Below 1 Ω TEXT IN ILLUSTRATION*a Front view of DLC3 *b Rear view of wire harness connector
(to ECM)
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 3
- Turn the engine switch off.
- CHECK HARNESS AND CONNECTOR (DLC3 - BODY GROUND)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition G37-4 (CG) - Body ground Always Below 1 Ω TEXT IN ILLUSTRATION*a Front view of DLC3
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 4
- Measure the resistance according to the value(s) in the table below.
- CHECK HARNESS AND CONNECTOR (ECM - BODY GROUND)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition G45-28 (TC) - Body ground Always 1 MΩ or higher TEXT IN ILLUSTRATION*a Rear view of wire harness connector
(to ECM)
Result:
OK
REPLACE CENTER AIRBAG SENSOR ASSEMBLY
(Refer to REMOVAL [08/2015 - ] )
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR OR EACH ECU
- Measure the resistance according to the value(s) in the table below.
