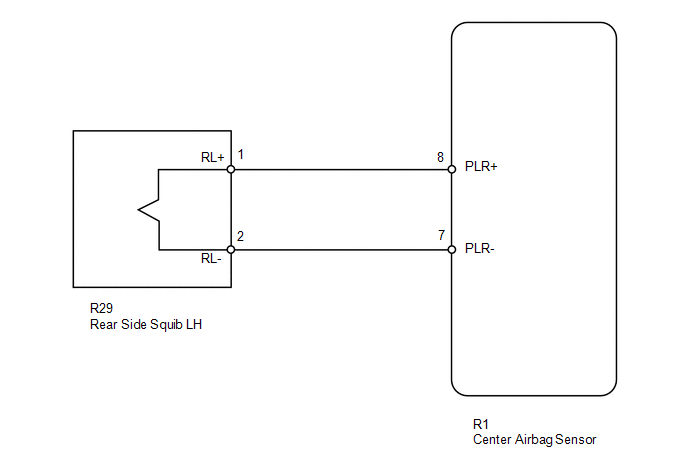

DTC B1925: Short in Rear P/T Squib (LH) Circuit; DTC B1926: Open in Rear P/T Squib (LH) Circuit; DTC B1927: Short in Rear P/T Squib (LH) Circuit (to Ground); DTC B1928: Short in Rear P/T Squib (LH) Circuit (to +B) [08/2019 - ]: Wiring Diagram

GTY257087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
