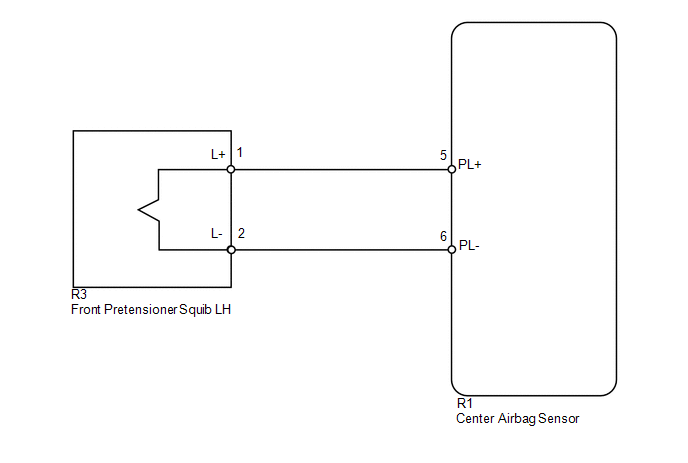

DTC B1905: Short in P/T Squib (LH) Circuit; DTC B1906: Open in P/T Squib (LH) Circuit; DTC B1907: Short in P/T Squib (LH) Circuit (to Ground); DTC B1908: Short in P/T Squib (LH) Circuit (to +B) [08/2019 - ]: Wiring Diagram

GTY617020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
