DTC B1905: Short in P/T Squib (LH) Circuit; DTC B1906: Open in P/T Squib (LH) Circuit; DTC B1907: Short in P/T Squib (LH) Circuit (to Ground); DTC B1908: Short in P/T Squib (LH) Circuit (to +B) [08/2019 - ]: Procedure

  1. CHECK FRONT SEAT OUTER BELT LH (FRONT PRETENSIONER SQUIB LH)
    1. Turn the engine switch off.

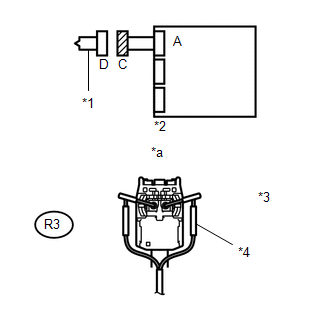

      GTY627185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Disconnect the connectors from the front seat outer belt LH.
    4. Connect the white wire side of SST (resistance: 2.1 Ω) to connector C.
      WARNING:

      Never connect the tester to the front seat outer belt LH (front pretensioner squib LH) for measurement, as this may lead to a serious injury due to airbag deployment.

      NOTE:
      • Do not forcibly insert SST into the terminals of the connector when connecting SST.
      • Insert SST straight into the terminals of the connector.
      • SST: 09843-18061
    5. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    6. Turn the engine switch on (IG), and wait for at least 60 seconds.
    7. Clear the DTCs (Refer to DTC CHECK / CLEAR [08/2019 - ] ).
    8. Turn the engine switch off.
    9. Turn the engine switch on (IG), and wait for at least 60 seconds.
    10. Check for DTCs (Refer to DTC CHECK / CLEAR [08/2019 - ] ).

      OK

      DTC B1905, B1906, B1907 or B1908 is not output.

      HINT:

      Codes other than DTC B1905, B1906, B1907 and B1908 may be output at this time, but they are not related to this check.

      TEXT IN ILLUSTRATION

      *1 Front Pretensioner Squib LH
      *2 Center Airbag Sensor
      *3 Connector C
      *4 SST
      *a Front view of wire harness connector
      (to Front Pretensioner Squib LH)

    Result:

    OK

    REPLACE FRONT SEAT OUTER BELT ASSEMBLY LH

    (Refer to REMOVAL [08/2019 - ] )

    Result:

    NG

    See step  2

  2. CHECK CONNECTOR
    1. Turn the engine switch off.
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Disconnect SST from connector C.
    4. Check that the floor wire connector (on the front seat outer belt LH side) is not damaged.

      OK

      The lock button is not disengaged, and the claw of the lock is not deformed or damaged.

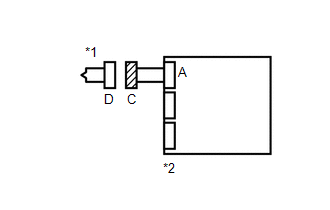

      GTY681679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Front Pretensioner Squib LH
      *2 Center Airbag Sensor

    Result:

    NG

    REPLACE NO. 2 FLOOR WIRE

    Result:

    OK

    See step  3

  3. CHECK NO. 2 FLOOR WIRE (FRONT PRETENSIONER SQUIB LH CIRCUIT)
    1. Disconnect the connectors from the center airbag sensor.

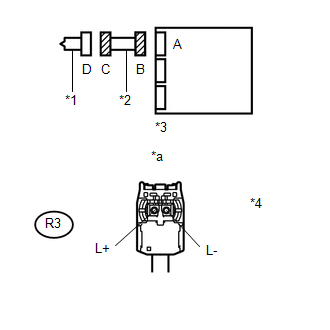

      GTY621447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      R3-1 (L+) - Body ground Engine switch on (IG) Below 1 V
      R3-2 (L-) - Body ground Engine switch on (IG) Below 1 V
    4. Turn the engine switch off.
    5. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    6. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R3-1 (L+) - R3-2 (L-) Always Below 1 Ω
    7. Release the activation prevention mechanism built into connector B (Refer to DIAGNOSIS SYSTEM [08/2019 - ] ).
    8. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R3-1 (L+) - R3-2 (L-) Always 1 MΩ or higher
      R3-1 (L+) - Body ground Always 1 MΩ or higher
      R3-2 (L-) - Body ground Always 1 MΩ or higher
      TEXT IN ILLUSTRATION

      *1 Front Pretensioner Squib LH
      *2 No. 2 Floor Wire
      *3 Center Airbag Sensor
      *4 Connector C
      *a Front view of wire harness connector
      (to Front Pretensioner Squib LH)

    Result:

    NG

    REPLACE NO. 2 FLOOR WIRE

    Result:

    OK

    See step  4

  4. CHECK CENTER AIRBAG SENSOR
    1. Connect the connectors to the front seat outer belt LH and center airbag sensor.

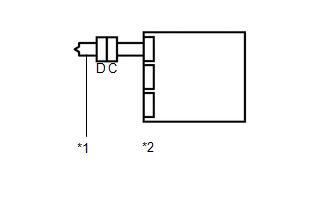

      GTY400510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    3. Turn the engine switch on (IG), and wait for at least 60 seconds.
    4. Clear the DTCs (Refer to DTC CHECK / CLEAR [08/2019 - ] ).
    5. Turn the engine switch off.
    6. Turn the engine switch on (IG), and wait for at least 60 seconds.
    7. Check for DTCs (Refer to DTC CHECK / CLEAR [08/2019 - ] ).

      OK

      DTC B1905, B1906, B1907 or B1908 is not output.

      HINT:

      Codes other than DTC B1905, B1906, B1907 and B1908 may be output at this time, but they are not related to this check.

      TEXT IN ILLUSTRATION

      *1 Front Pretensioner Squib LH
      *2 Center Airbag Sensor

    Result:

    OK

    USE SIMULATION METHOD TO CHECK

    (Refer to DIAGNOSIS SYSTEM [08/2019 - ] )

    Result:

    NG

    REPLACE CENTER AIRBAG SENSOR ASSEMBLY

    (Refer to REMOVAL [08/2015 - ] )
