DTC B1850: Short in Rear Side Squib RH Circuit; DTC B1851: Open in Rear Side Squib RH Circuit; DTC B1852: Short to GND in Rear Side Squib RH Circuit; DTC B1853: Short to B+ in Rear Side Squib RH Circuit [08/2019 - ]: Procedure

  1. CHECK REAR SEAT SIDE AIRBAG RH (REAR SIDE SQUIB RH)

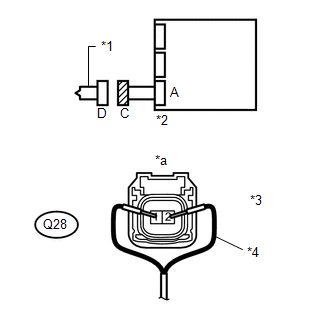

    GTY641967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the engine switch off.
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Disconnect the connector from the rear seat side airbag RH.
    4. Connect the red wire side of SST (resistance: 2.1 Ω) to connector C.
      WARNING:

      Never connect the tester to the rear seat side airbag RH (rear side squib RH) for measurement, as this may lead to a serious injury due to airbag deployment.

      NOTE:
      • Do not forcibly insert SST into the terminals of the connector when connecting SST.
      • Insert SST straight into the terminals of the connector.
      • SST: 09843-18061
    5. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    6. Turn the engine switch on (IG), and wait for at least 60 seconds.
    7. Clear the DTCs (Refer to DTC CHECK / CLEAR [08/2019 - ] ).
    8. Turn the engine switch off.
    9. Turn the engine switch on (IG), and wait for at least 60 seconds.
    10. Check for DTCs (Refer to DTC CHECK / CLEAR [08/2019 - ] ).
      RESULT

      Result Proceed to
      DTC B1850, B1851, B1852 or B1853 is not output A
      DTC B1850, B1851, B1852 or B1853 is output. B

      HINT:

      Codes other than DTC B1850, B1851, B1852 and B1853 may be output at this time, but they are not related to this check.

      TEXT IN ILLUSTRATION

      *1 Rear Side Squib RH
      *2 Center Airbag Sensor
      *3 Connector C
      *4 SST
      *a Front view of wire harness connector
      (to Rear Side Squib RH)

    Result:

    A

    REPLACE REAR SEATBACK ASSEMBLY RH

    (Refer to REMOVAL [08/2016 - ] )

    Result:

    B

    See step  2

  2. CHECK CONNECTOR
    1. Turn the engine switch off.
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Disconnect SST from connector C.
    4. Check that the floor wire connector (on the rear seat side airbag RH side) is not damaged.

      OK

      The lock button is not disengaged, and the claw of the lock is not deformed or damaged.

      GTY646273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Rear Side Squib RH
      *2 Center Airbag Sensor

    Result:

    NG

    REPLACE FLOOR WIRE

    Result:

    OK

    See step  3

  3. CHECK FLOOR WIRE (REAR SIDE SQUIB RH CIRCUIT)
    1. Disconnect the connectors from the center airbag sensor.

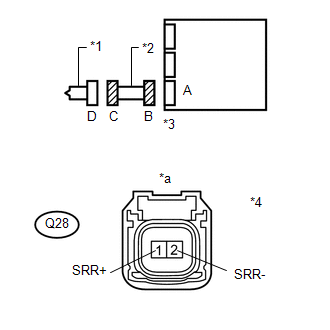

      GTY667368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      Q28-1 (SRR+) - Body ground Engine switch on (IG) Below 1 V
      Q28-2 (SRR-) - Body ground Engine switch on (IG) Below 1 V
    4. Turn the engine switch off.
    5. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    6. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Q28-1 (SRR+) - Q28-2 (SRR-) Always Below 1 Ω
    7. Release the activation prevention mechanism built into connector B (Refer to DIAGNOSIS SYSTEM [08/2019 - ] ).
    8. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Q28-1 (SRR+) - Q28-2 (SRR-) Always 1 MΩ or higher
      Q28-1 (SRR+) - Body ground Always 1 MΩ or higher
      Q28-2 (SRR-) - Body ground Always 1 MΩ or higher
      TEXT IN ILLUSTRATION

      *1 Rear Side Squib RH
      *2 Center Airbag Sensor
      *3 Connector C
      *4 SST
      *a Front view of wire harness connector
      (to Rear Side Squib RH)

    Result:

    NG

    REPLACE FLOOR WIRE

    Result:

    OK

    See step  4

  4. CHECK CENTER AIRBAG SENSOR
    GTY409911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the connectors to the rear seat side airbag RH and the center airbag sensor.
    2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    3. Turn the engine switch on (IG), and wait for at least 60 seconds.
    4. Clear the DTCs (Refer to DTC CHECK / CLEAR [08/2019 - ] ).
    5. Turn the engine switch off.
    6. Turn the engine switch on (IG), and wait for at least 60 seconds.
    7. Check for DTCs (Refer to DTC CHECK / CLEAR [08/2019 - ] ).

      OK

      DTC B1850, B1851, B1852 or B1853 is not output.

      HINT:

      Codes other than DTC B1850, B1851, B1852 and B1853 may be output at this time, but they are not related to this check.

      TEXT IN ILLUSTRATION

      *1 Rear Side Squib RH
      *2 Center Airbag Sensor

    Result:

    OK

    USE SIMULATION METHOD TO CHECK

    (Refer to DIAGNOSIS SYSTEM [08/2019 - ] )

    Result:

    NG

    REPLACE CENTER AIRBAG SENSOR ASSEMBLY

    (Refer to REMOVAL [08/2015 - ] )
