DTC B1830-57: Short in Curtain Shield Squib RH Circuit; DTC B1831-57: Open in Curtain Shield Squib RH Circuit; DTC B1832-57: Short to GND in Curtain Shield Squib RH Circuit; DTC B1833-57: Short to B+ in Curtain Shield Squib RH Circuit [08/2015 - 08/2019]: Procedure

1. Turn the engine switch off.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
3. Disconnect the connector from the curtain shield airbag RH.
4. Connect the black wire side of SST (resistance: 2.1 Ω) to connector C.
   WARNING:

   Never connect the tester to the curtain shield airbag RH (curtain shield squib RH) for measurement, as this may lead to a serious injury due to airbag deployment.

   NOTE:

   • Do not forcibly insert SST into the terminals of the connector when connecting SST.
   • Insert SST straight into the terminals of the connector.
   • SST: 09843-18061
5. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
6. Turn the engine switch on (IG), and wait for at least 60 seconds.
7. Clear the DTCs (Refer to DTC CHECK / CLEAR [08/2015 - 08/2019] ).
8. Turn the engine switch off.
9. Turn the engine switch on (IG), and wait for at least 60 seconds.
10. Check for DTCs (Refer to DTC CHECK / CLEAR [08/2015 - 08/2019] ).

    OK

    DTC B1830, B1831, B1832 or B1833 is not output.

    HINT:

    Codes other than DTC B1830, B1831, B1832 and B1833 may be output at this time, but they are not related to this check.

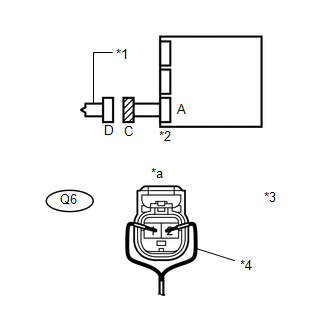

    TEXT IN ILLUSTRATION



    *1	Curtain Shield Squib RH
    *2	Center Airbag Sensor
    *3	Connector C
    *4	SST
    *a	Front view of wire harness connector (to Curtain Shield Squib RH)

Result:

OK

REPLACE CURTAIN SHIELD AIRBAG ASSEMBLY RH

(Refer to REMOVAL [08/2015 - ] )

Result:

NG

See step  2

1. Turn the engine switch off.
2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
3. Disconnect SST from connector C.
4. Check that the floor wire connector (on the curtain shield airbag RH side) is not damaged.

   OK

   The lock button is not disengaged, and the claw of the lock is not deformed or damaged.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Curtain Shield Squib RH
   *2	Center Airbag Sensor

Result:

NG

REPLACE FLOOR WIRE

Result:

OK

See step  3

1. Disconnect the connectors from the center airbag sensor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   Q6-1 (ICR+) - Body ground	Engine switch on (IG)	Below 1 V
   Q6-2 (ICR-) - Body ground	Engine switch on (IG)	Below 1 V

4. Turn the engine switch off.
5. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
6. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   Q6-1 (ICR+) - Q6-2 (ICR-)	Always	Below 1 Ω

7. Release the activation prevention mechanism built into connector B (Refer to DIAGNOSIS SYSTEM [08/2015 - 08/2019] ).
8. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   Q6-1 (ICR+) - Q6-2 (ICR-)	Always	1 MΩ or higher
   Q6-1 (ICR+) - Body ground	Always	1 MΩ or higher
   Q6-2 (ICR-) - Body ground	Always	1 MΩ or higher

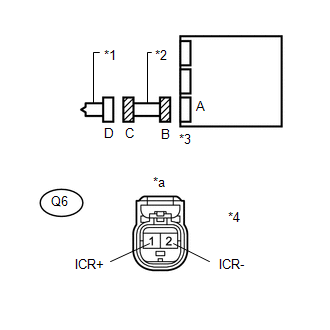

   TEXT IN ILLUSTRATION



   *1	Curtain Shield Squib RH
   *2	Floor Wire
   *3	Center Airbag Sensor
   *4	Connector C
   *a	Front view of wire harness connector (to Curtain Shield Squib RH)

Result:

NG

REPLACE FLOOR WIRE

Result:

OK

See step  4

1. Connect the connectors to the curtain shield airbag RH and center airbag sensor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
3. Turn the engine switch on (IG), and wait for at least 60 seconds.
4. Clear the DTCs (Refer to DTC CHECK / CLEAR [08/2015 - 08/2019] ).
5. Turn the engine switch off.
6. Turn the engine switch on (IG), and wait for at least 60 seconds.
7. Check for DTCs (Refer to DTC CHECK / CLEAR [08/2015 - 08/2019] ).

   OK

   DTC B1830, B1831, B1832 or B1833 is not output.

   HINT:

   Codes other than DTC B1830, B1831, B1832 and B1833 may be output at this time, but they are not related to this check.

   TEXT IN ILLUSTRATION



   *1	Curtain Shield Squib RH
   *2	Center Airbag Sensor

Result:

OK

USE SIMULATION METHOD TO CHECK

(Refer to DIAGNOSIS SYSTEM [08/2015 - 08/2019] )

Result:

NG

REPLACE CENTER AIRBAG SENSOR ASSEMBLY

(Refer to REMOVAL [08/2015 - ] )
