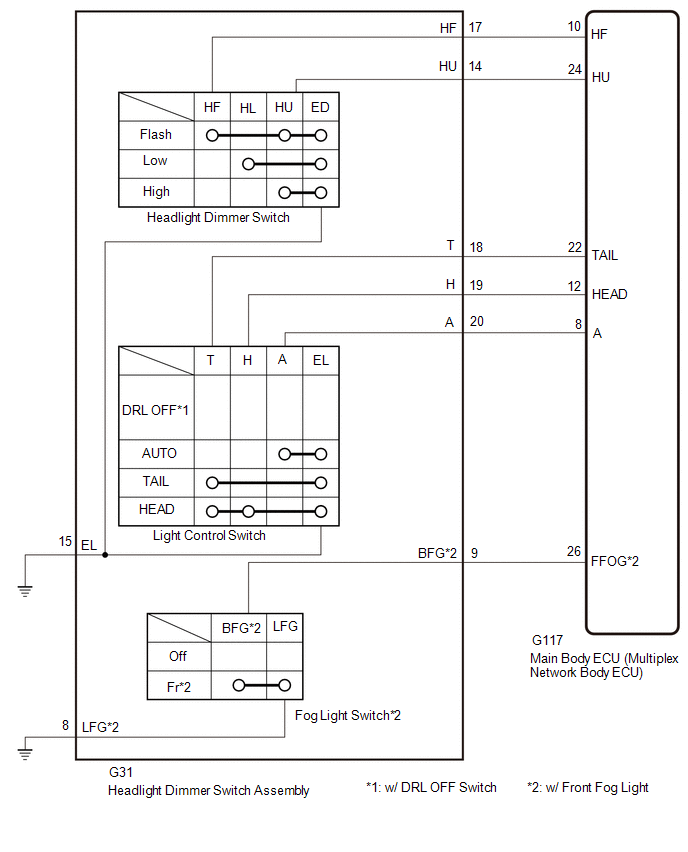

Headlight Dimmer Switch Circuit [08/2020 - ]: Wiring Diagram

GTY961891

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
