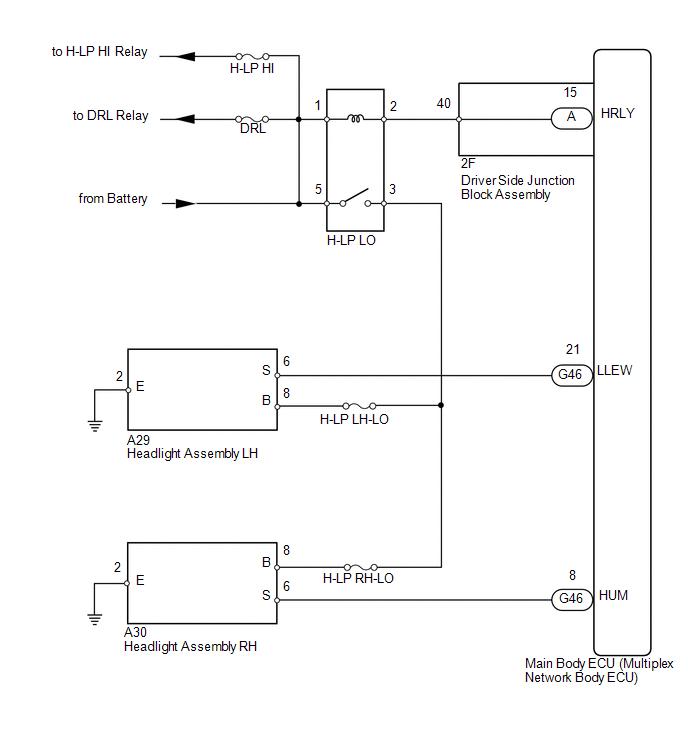

DTC B2430: LED Headlight LH Circuit Malfunction; DTC B2431: LED Headlight RH Circuit Malfunction [08/2015 - 08/2019]: Wiring Diagram

GTY458272

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
