DTC B242E: Open in IG Circuit [08/2019 - 08/2021]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / AFS / Clear DTCs.
5. Clear the DTCs.

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  2

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Wait 10 seconds or more.
4. Turn the Techstream on.
5. Enter the following menus: Body Electrical / AFS / Trouble Codes.
6. Check for DTCs.

   OK

   DTC B242E is not output.

   Result

   Proceed to
   OK
   NG

Result:

OK

USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [08/2019 - 08/2020]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [08/2020 - 08/2021]

Result:

NG

See step  3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

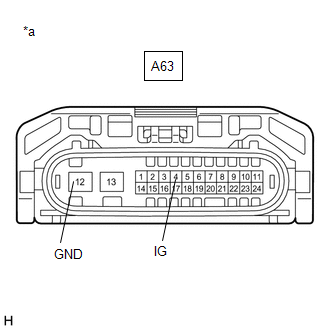

1. Disconnect the No. 1 headlight ECU sub-assembly LH connector.
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   A63-4 (IG) - Body ground	Engine switch on (IG)	11 to 14 V

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A63-12 (GND) - Body ground	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [08/2019 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
