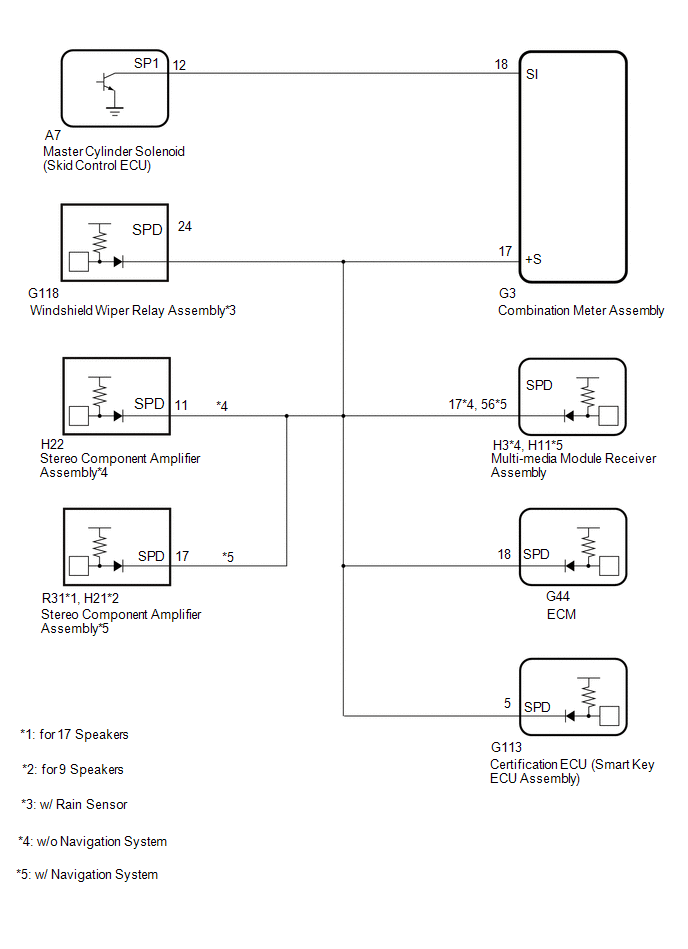

Speed Signal Circuit [08/2019 - 08/2021]: Wiring Diagram

GTY962054

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
