Speed Signal Circuit [08/2017 - 08/2018]: Wiring Diagram

GTY628381

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

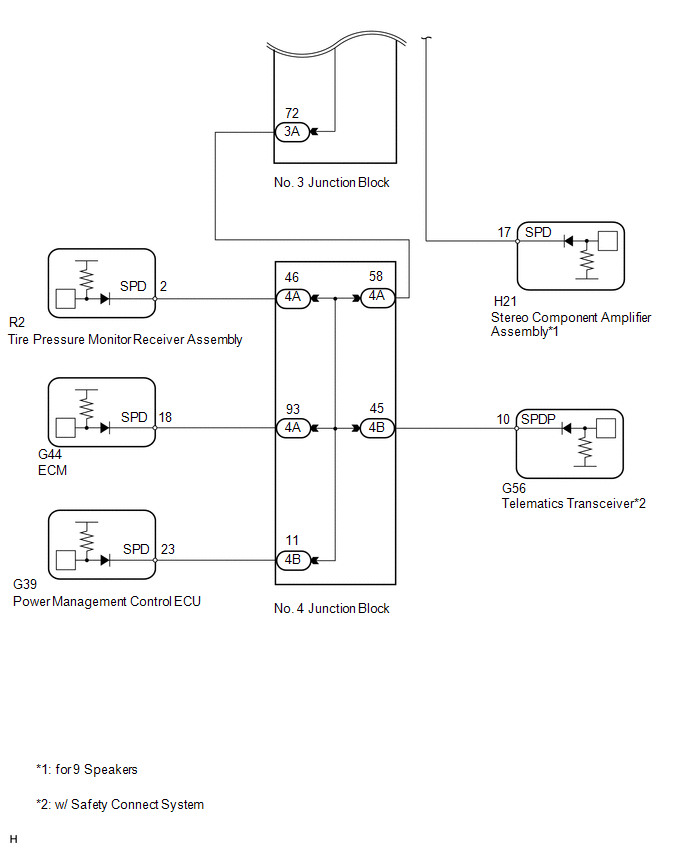

GTY830015

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
