Components [08/2020 - ]

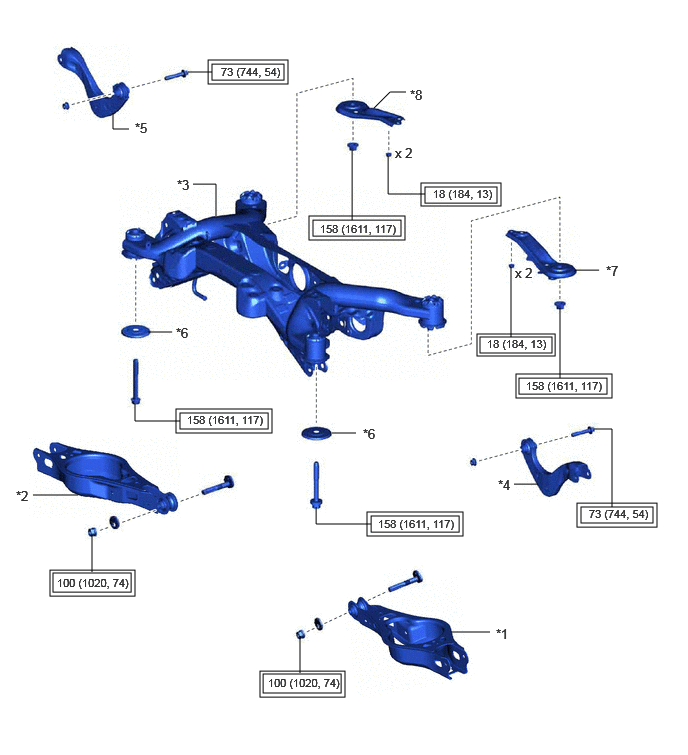

| *1 | REAR NO. 2 SUSPENSION ARM ASSEMBLY LH | *2 | REAR NO. 2 SUSPENSION ARM ASSEMBLY RH |
| *3 | REAR SUSPENSION MEMBER SUB-ASSEMBLY | *4 | REAR UPPER CONTROL ARM ASSEMBLY LH |
| *5 | REAR UPPER CONTROL ARM ASSEMBLY RH | *6 | REAR SUSPENSION MEMBER LOWER STOPPER |
| *7 | REAR SUSPENSION MEMBER LOWER BRACE LH | *8 | REAR SUSPENSION MEMBER LOWER BRACE RH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

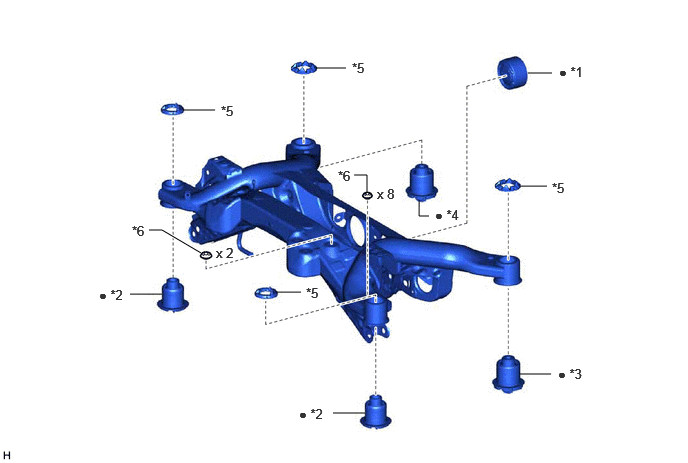

| *1 | REAR NO. 1 DIFFERENTIAL MOUNT CUSHION | *2 | REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION |
| *3 | REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH | *4 | REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH |
| *5 | REAR SUSPENSION MEMBER CUSHION | *6 | HOLE PLUG |
| • | Non-reusable part | - | - |
