Removal [06/2018 - ]: Procedure

Refer to PROCEDURE - Step 1

1. Remove the 2 bolts and clip (A).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the 2 grommets (B) and 2 clips (C) to remove the No. 2 floor under cover.

1. Remove the 2 bolts and clip (A).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the 2 grommets (B) and 2 clips (C) to remove the No. 1 floor under cover.

for 2GR-FKS: Refer to REMOVAL [06/2018 - ]

for A25A-FXS: Refer to REMOVAL [06/2018 - ]

1. Remove the cap from the rear stabilizer link assembly LH.

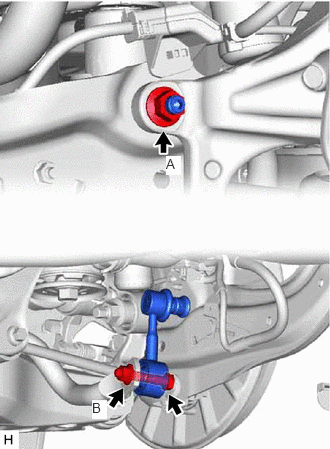

2. Loosen the nut (A) of the rear stabilizer link assembly LH.

   HINT:

   If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Loosen the nut (B) of the rear stabilizer link assembly LH.
4. Using a jack and wooden block, support the rear No. 2 suspension arm assembly.
   NOTE:

   • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
   • Make sure to perform this operation with the vehicle kept as low as possible.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Wooden Block
   *b	Jack

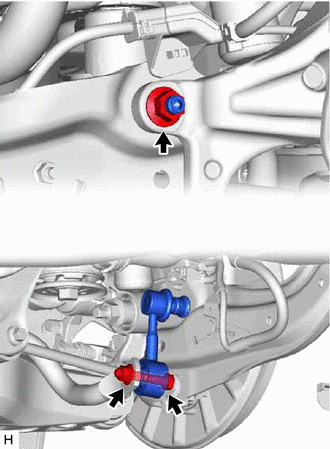

5. Remove the bolt, 2 nuts and rear stabilizer link assembly LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform the same procedure as for the LH side.

1. Remove the 4 bolts, rear stabilizer bar, 2 rear No. 1 stabilizer bar brackets and 2 rear stabilizer bushings from the rear suspension member sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 rear No. 1 stabilizer bar brackets from the 2 rear stabilizer bushings.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 rear stabilizer bushings from the rear stabilizer bar.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
