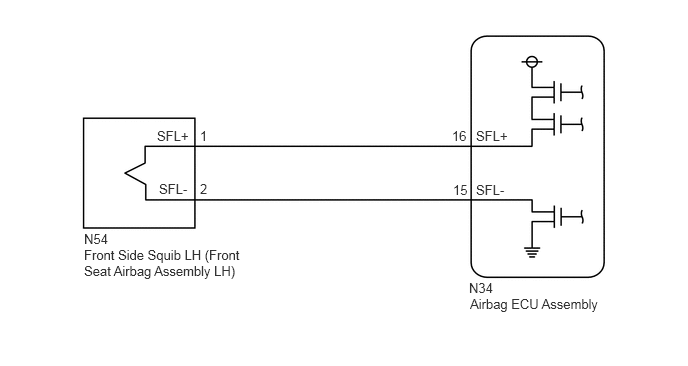

DTC B1825: Short in Side Squib (LH) Circuit; DTC B1826: Open in Side Squib (LH) Circuit; DTC B1827: Short in Side Squib (LH) Circuit (to Ground); DTC B1828: Short in Side Squib (LH) Circuit (to +B) [06/2018 - ]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
