Components [06/2018 - ]

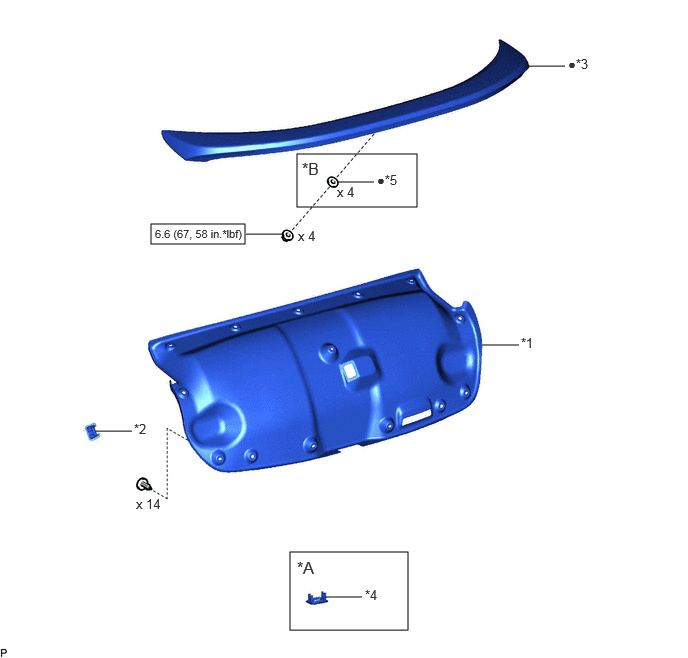

Fig 1: Rear Spoiler Replacement Components With Torque Specifications [06/2018 - ]
GTY949759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/ Power Trunk Lid System *B for TMMK Made
*1 LUGGAGE COMPARTMENT DOOR COVER *2 LUGGAGE LOCK CONTROL CABLE PLATE
*3 REAR SPOILER SUB-ASSEMBLY *4 SWITCH BEZEL
*5 GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
