Components [08/2021 - ]

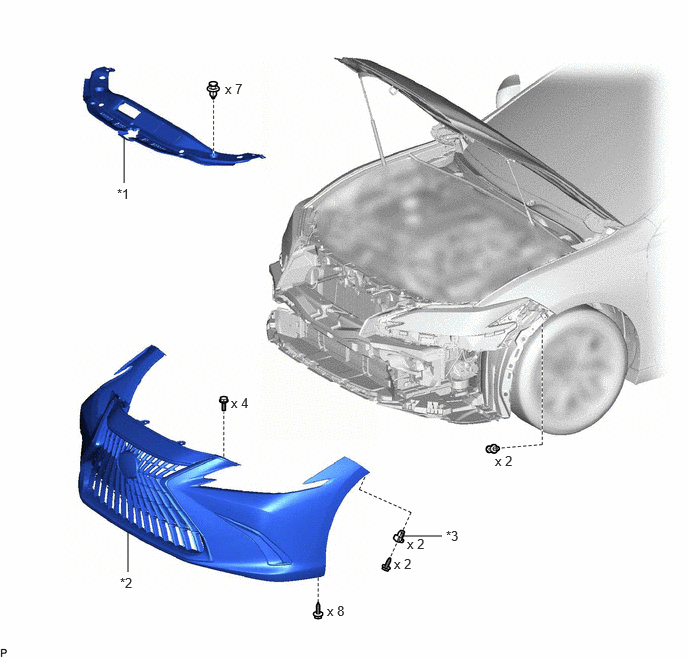

Fig 1: Front Bumper Replacement Components [08/2021 - ] (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COOL AIR INTAKE DUCT SEAL	*2	FRONT BUMPER ASSEMBLY
*3	FRONT BUMPER SIDE MOUNTING BRACKET	-	-

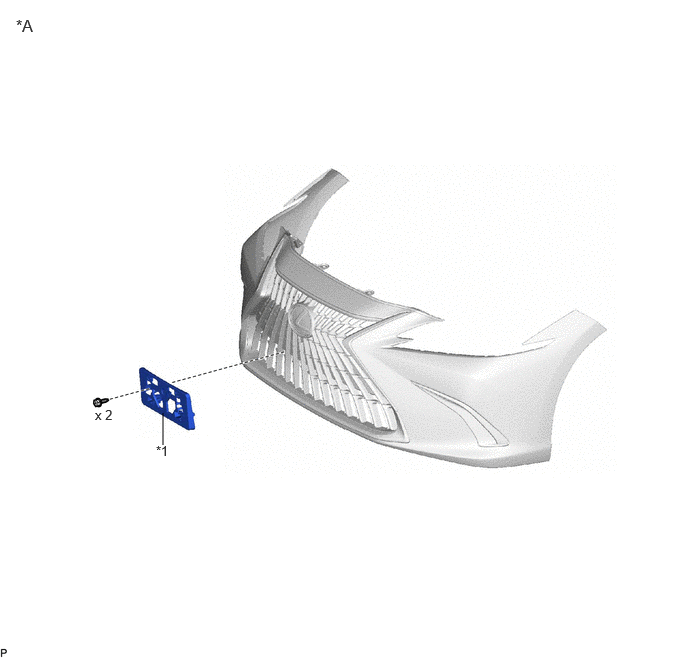

Fig 2: Front Bumper Replacement Components [08/2021 - ] (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Bar Type Radiator Grille	-	-
*1	FRONT BUMPER EXTENSION MOUNTING BRACKET	-	-

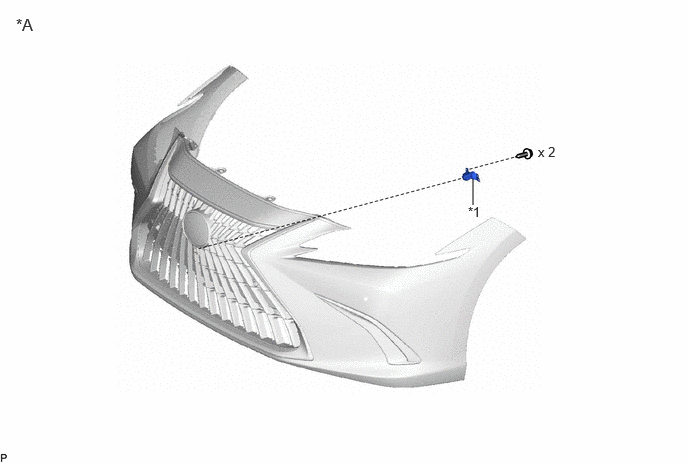

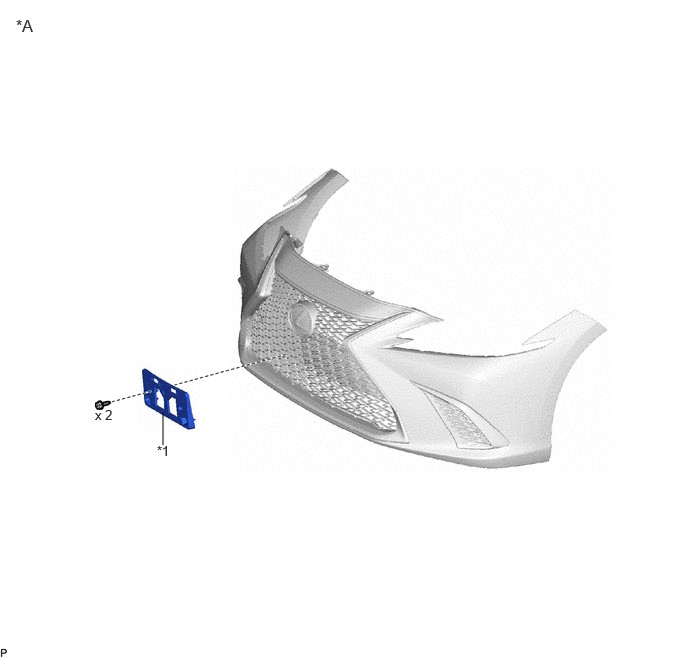

Fig 3: Front Bumper Replacement Components [08/2021 - ] (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Mesh Type Radiator Grille	-	-
*1	FRONT BUMPER EXTENSION MOUNTING BRACKET	-	-

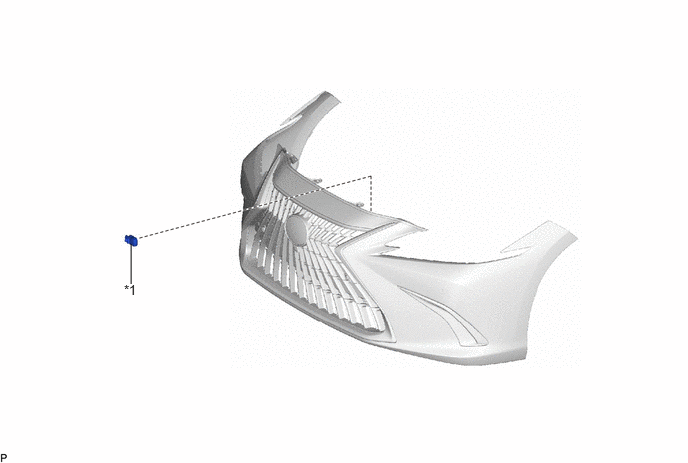

Fig 4: Front Bumper Replacement Components [08/2021 - ] (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SMOG VENTILATION SENSOR

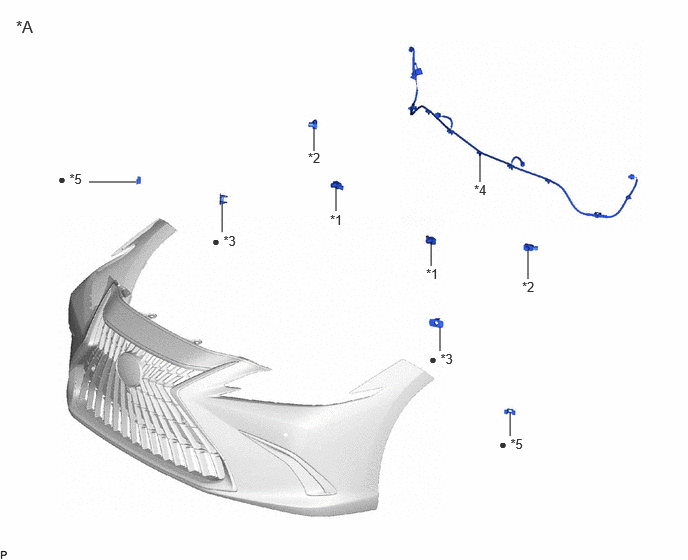

Fig 5: Front Bumper Replacement Components [08/2021 - ] (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Parking Support Alert System	-	-
*1	FRONT CENTER ULTRASONIC SENSOR	*2	FRONT CORNER ULTRASONIC SENSOR
*3	FRONT CORNER ULTRASONIC SENSOR RETAINER	*4	NO. 4 ENGINE ROOM WIRE
*5	ULTRASONIC SENSOR CLIP	-	-
•	Non-reusable part	-	-

Fig 6: Front Bumper Replacement Components [08/2021 - ] (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Panoramic View Monitor System	-	-
*1	FRONT TELEVISION CAMERA ASSEMBLY	-	-

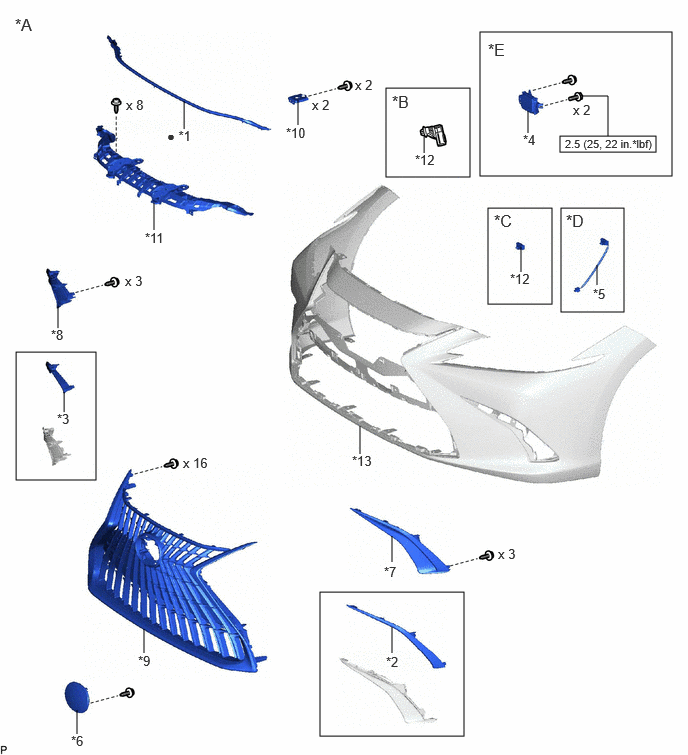

Fig 7: Front Bumper Replacement Components With Torque Specifications [08/2021 - ] (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Bar Type Radiator Grille	*B	w/o Parking Support Alert System
*C	w/o Panoramic View Monitor System	*D	w/ Panoramic View Monitor System
*E	w/ Pre-collision System	-	-
*1	CENTER FRONT BUMPER SEAL	*2	FRONT BUMPER SIDE MOULDING LH
*3	FRONT BUMPER SIDE MOULDING RH	*4	MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*5	NO. 5 ENGINE ROOM WIRE	*6	RADIATOR GRILLE (OR FRONT PANEL) EMBLEM
*7	RADIATOR GRILLE GARNISH SUB-ASSEMBLY LH	*8	RADIATOR GRILLE GARNISH SUB-ASSEMBLY RH
*9	RADIATOR GRILLE SUB-ASSEMBLY	*10	UPPER FRONT BUMPER RETAINER
*11	UPPER RADIATOR GRILLE	*12	WIRING HARNESS CONNECTOR
*13	FRONT BUMPER COVER	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part

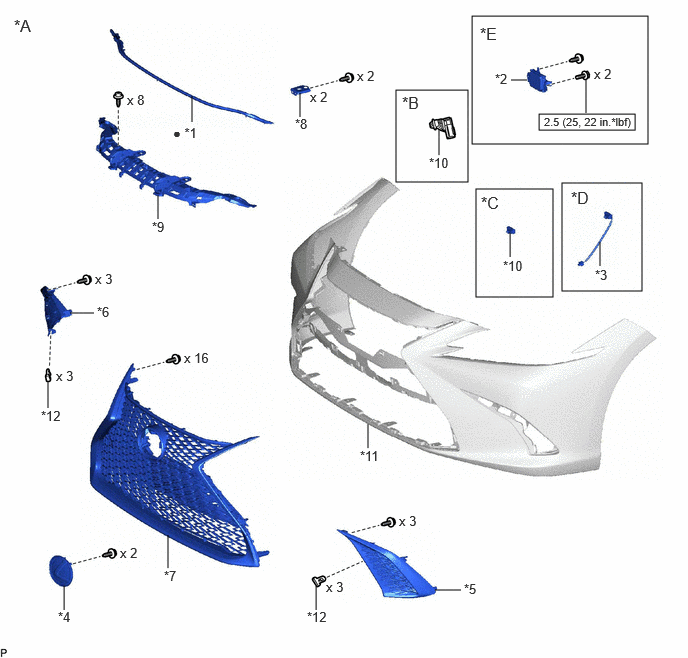

Fig 8: Front Bumper Replacement Components With Torque Specifications [08/2021 - ] (8 Of 11)

*A	for Mesh Type Radiator Grille	*B	w/o Parking Support Alert System
*C	w/o Panoramic View Monitor System	*D	w/ Panoramic View Monitor System
*E	w/ Pre-collision System	-	-
*1	CENTER FRONT BUMPER SEAL	*2	MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*3	NO. 5 ENGINE ROOM WIRE	*4	RADIATOR GRILLE (OR FRONT PANEL) EMBLEM
*5	RADIATOR GRILLE GARNISH SUB-ASSEMBLY LH	*6	RADIATOR GRILLE GARNISH SUB-ASSEMBLY RH
*7	RADIATOR GRILLE SUB-ASSEMBLY	*8	UPPER FRONT BUMPER RETAINER
*9	UPPER RADIATOR GRILLE	*10	WIRING HARNESS CONNECTOR
*11	FRONT BUMPER COVER	*12	OUTSIDE MOULDING RETAINER
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part

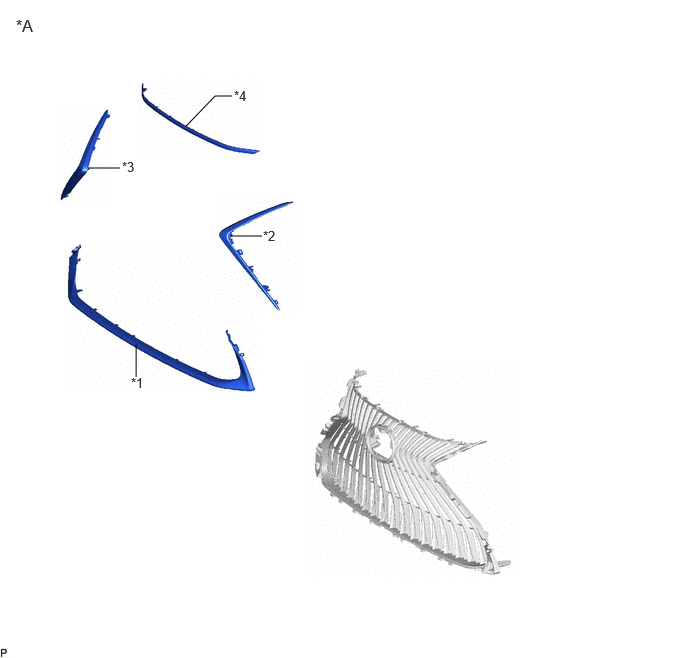

Fig 9: Front Bumper Replacement Components [08/2021 - ] (9 Of 11)

*A	for Bar Type Radiator Grille	-	-
*1	LOWER RADIATOR GRILLE MOULDING	*2	RADIATOR GRILLE SIDE MOULDING LH
*3	RADIATOR GRILLE SIDE MOULDING RH	*4	UPPER RADIATOR GRILLE MOULDING

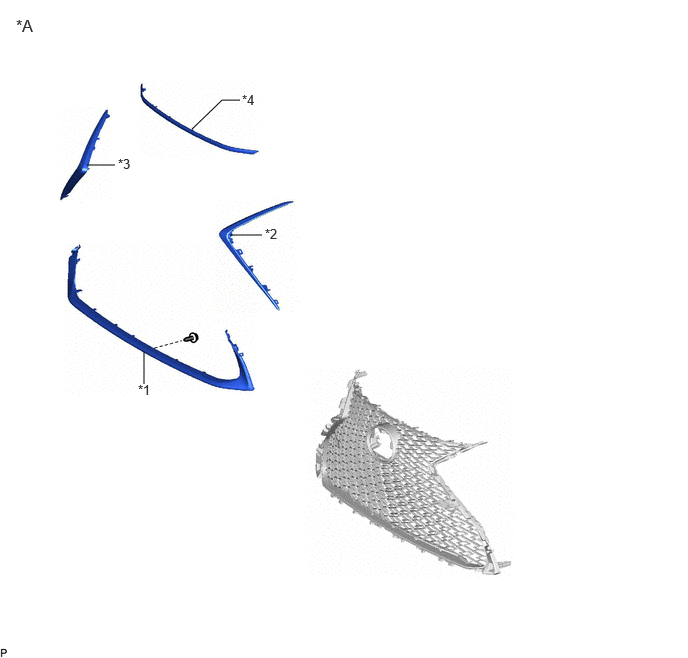

Fig 10: Front Bumper Replacement Components [08/2021 - ] (10 Of 11)

*A	for Mesh Type Radiator Grille	-	-
*1	LOWER RADIATOR GRILLE MOULDING	*2	RADIATOR GRILLE SIDE MOULDING LH
*3	RADIATOR GRILLE SIDE MOULDING RH	*4	UPPER RADIATOR GRILLE MOULDING

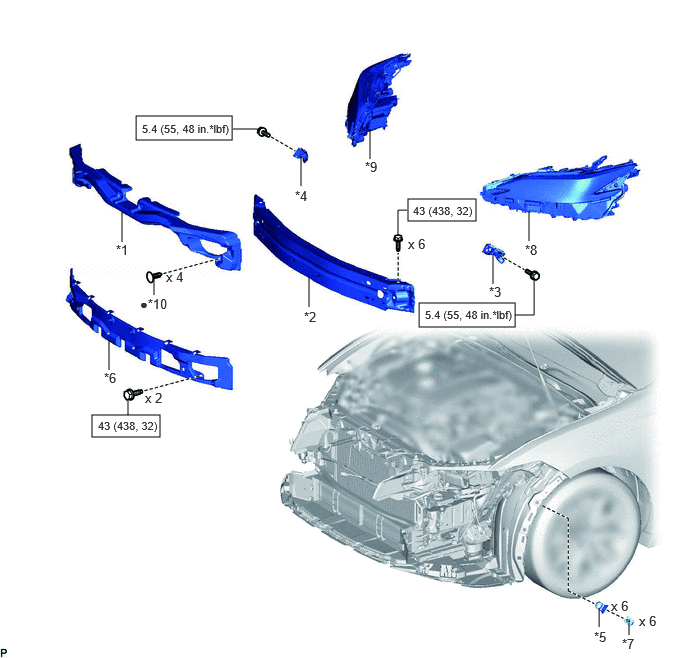

Fig 11: Front Bumper Replacement Components With Torque Specifications [08/2021 - ] (11 Of 11)

*1	FRONT BUMPER ENERGY ABSORBER	*2	FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
*3	FRONT BUMPER SIDE SUPPORT LH	*4	FRONT BUMPER SIDE SUPPORT RH
*5	FRONT FENDER LINER RETAINER	*6	NO. 2 FRONT BUMPER MOUNTING BRACKET
*7	PIN HOLD CLIP	*8	HEADLIGHT ASSEMBLY LH
*9	HEADLIGHT ASSEMBLY RH	*10	CLIP
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
