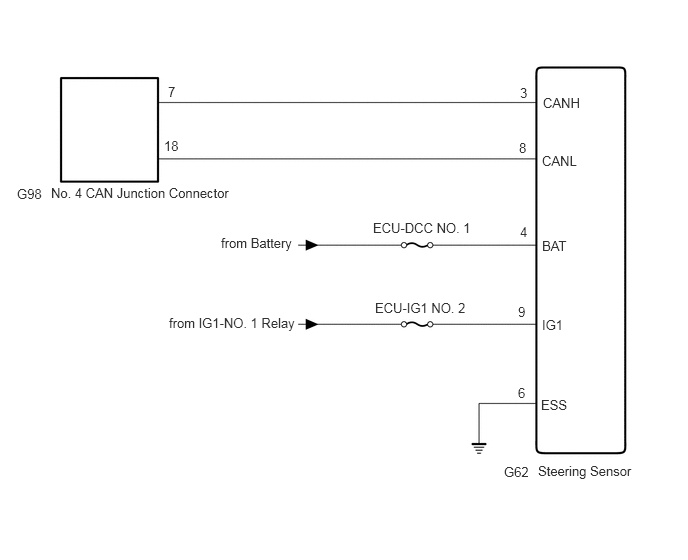

Steering Angle Sensor Communication Stop Mode [06/2018 - ]: Wiring Diagram

GTY836858

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
