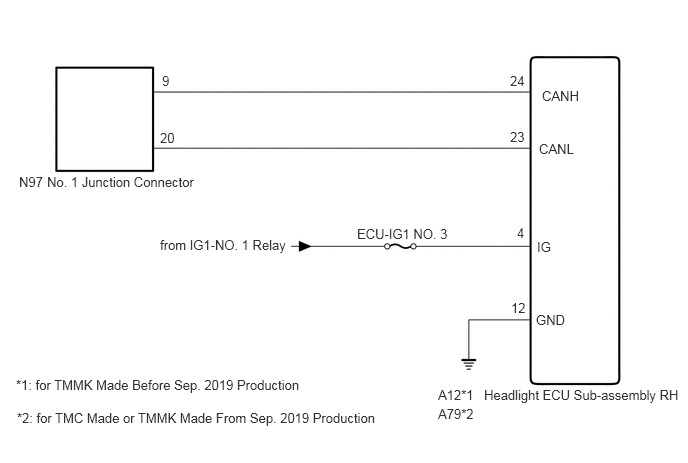

Headlight ECU RH Communication Stop Mode [07/2019 - 10/2019]: Wiring Diagram

GTY955351

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
