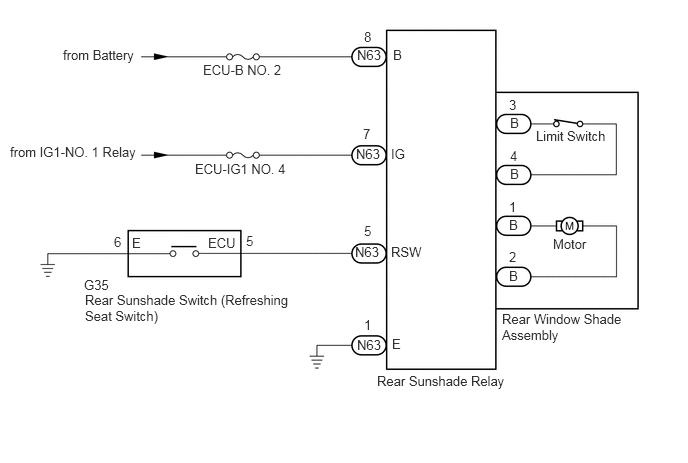

Rear Sunshade does not Operate with Rear Sunshade Switch [06/2018 - ]: Wiring Diagram

GTY810912

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
