Parts Location [08/2021 - ]: Illustration

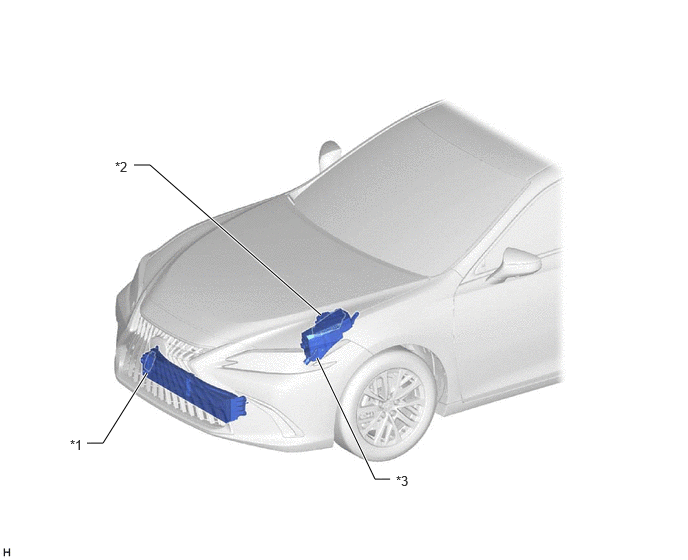

Fig 1: Grill Shutter System Components [08/2021 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	RADIATOR SHUTTER ASSEMBLY - RADIATOR SHUTTER SUB-ASSEMBLY - SWING GRILLE ACTUATOR ASSEMBLY	*2	ECM
*3	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - EFI-MAIN NO. 1 RELAY - EFI-MAIN NO. 1 FUSE - G/SHUTTER FUSE	-	-
