Parts Location [06/2018 - 08/2021]: Illustration

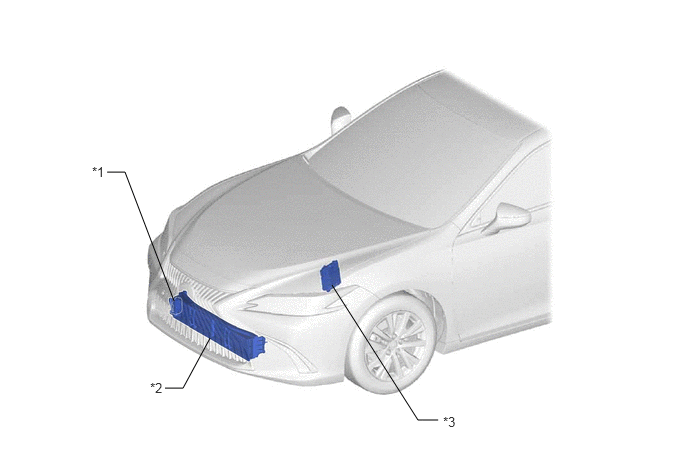

Fig 1: Grill Shutter System Components (1 of 2) [06/2018 - 08/2021]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	SWING GRILLE ACTUATOR ASSEMBLY	*2	RADIATOR SHUTTER SUB-ASSEMBLY
*3	ECM	-	-

Fig 1: Grill Shutter System Components (2 of 2) [06/2018 - 08/2021]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COMBINATION METER ASSEMBLY	*2	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE
*3	AIR CONDITIONING AMPLIFIER ASSEMBLY	*4	HYBRID VEHICLE CONTROL ECU
*5	DLC3	-	-
