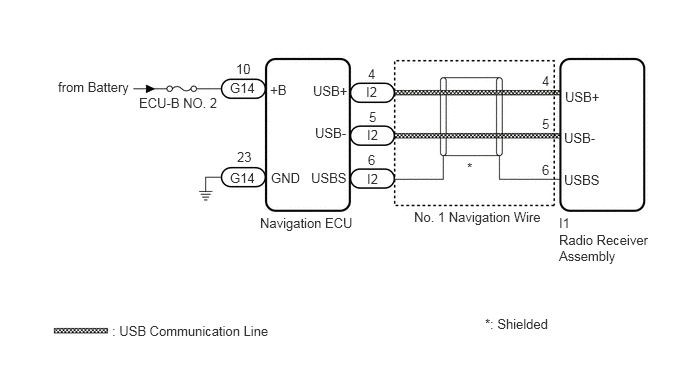

DTC B1543: Extension Module Disconnected 2 [06/2018 - 09/2022]: Wiring Diagram

GTY780757

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
