Components [06/2018 - ]

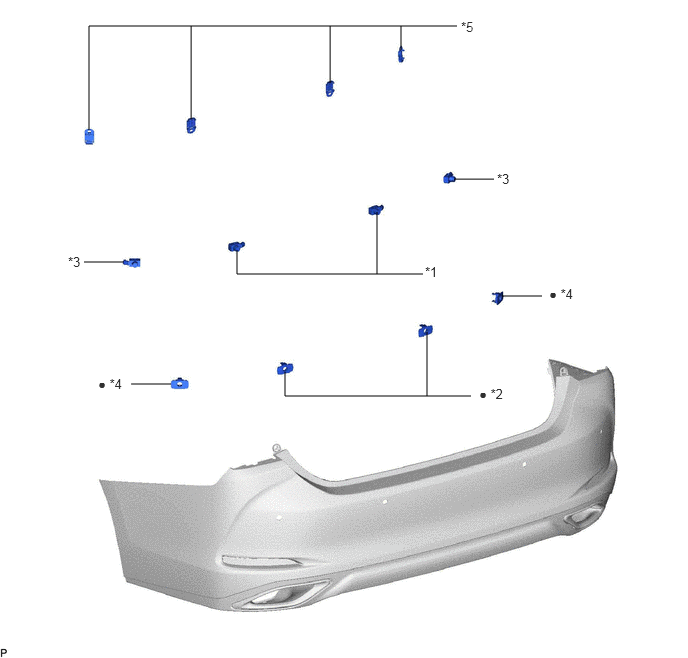

Fig 1: Ultrasonic Sensor (For Rear) Replacement Components [06/2018 - ] (1 Of 2)
GTY802846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REAR CENTER ULTRASONIC SENSOR *2 REAR CENTER ULTRASONIC SENSOR RETAINER
*3 REAR CORNER ULTRASONIC SENSOR *4 REAR CORNER ULTRASONIC SENSOR RETAINER
*5 ULTRASONIC SENSOR CLIP - -
• Non-reusable part - -

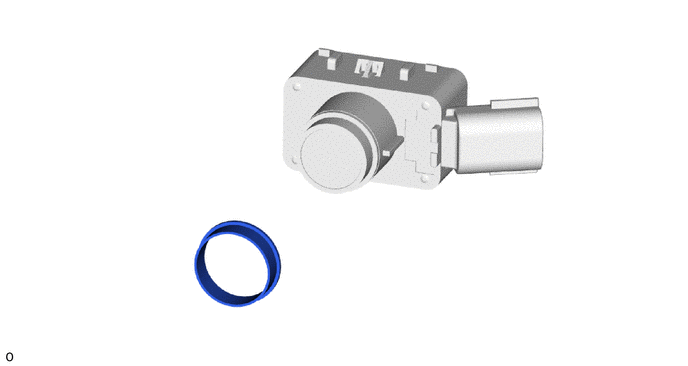

Fig 2: Ultrasonic Sensor (For Rear) Replacement Components [06/2018 - ] (2 Of 2)
GTY1085023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ULTRASONIC SENSOR CUSHION SET - -
