Removal [06/2018 - 08/2021]: Procedure

  1. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [06/2018 - 08/2021]

  2. REMOVE TELEPHONE AND GPS ANTENNA ASSEMBLY WITH COVER (for Moon Roof)

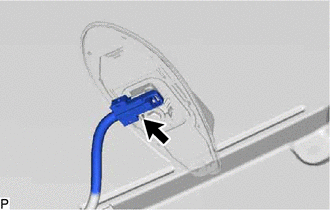

    1. Disconnect the connector.
      GTY797959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

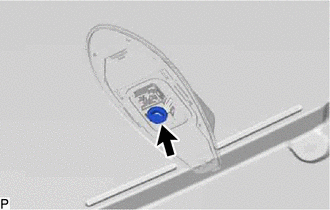

    2. Remove the bolt.
      GTY797961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

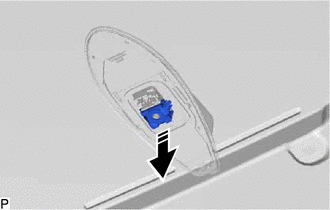

    3. Remove the washer and holder as shown in the illustration.
      GTY779211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

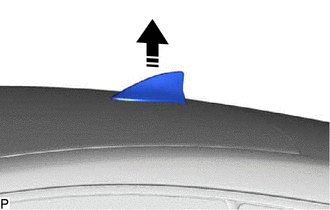

    4. Remove the telephone and GPS antenna assembly with cover as shown in the illustration.
      GTY831902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE TELEPHONE AND GPS ANTENNA ASSEMBLY (for Moon Roof)

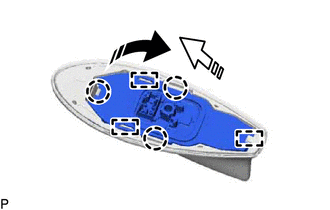

    1. Pull the telephone and GPS antenna assembly in the direction indicated by the arrow (1) shown in the illustration to disengage the 3 claws and 2 guides.
      GTY806491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull the telephone and GPS antenna assembly in the direction indicated by the arrow (2) shown in the illustration to disengage the guide and remove the telephone and GPS antenna assembly.
    3. When reusing the telephone and GPS antenna assembly:
      1. Remove the seal.
        GTY797914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE TELEPHONE AND GPS ANTENNA ASSEMBLY (for Panoramic Moon Roof)

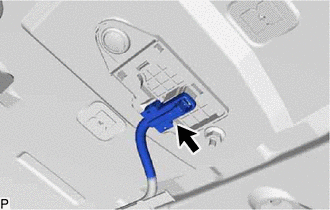

    1. Disconnect the connector.
      GTY797915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

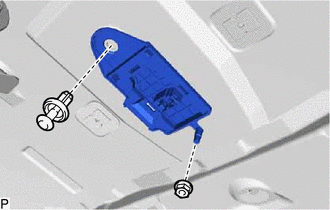

    2. Remove the nut and clip.
      GTY832252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

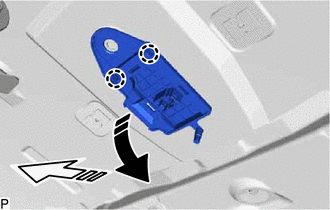

    3. Disengage the 2 claws and remove the telephone and GPS antenna assembly as shown in the illustration.
      GTY803370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
